Bals 24196 wall device plug TE 32A 7p 400V 6h IP44 housing size: 126x83

Your rating:
Average rating
Rating for Bals 24196 wall device plug TE 32A 7p 400V 6h IP44 housing size: 126x83
( 4.4 / 5 ) 5 ratings
BALS 24196
This image may differ from the desired article.
350,06 EUR
( 416,57 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 24196 wall device plug TE 32A 7p 400V 6h IP44 housing size: 126x83
Lieske Part No.:1315951
Mfg Part No: 24196
UPC/EAN: 4024941241960
Weight:0.12 kg

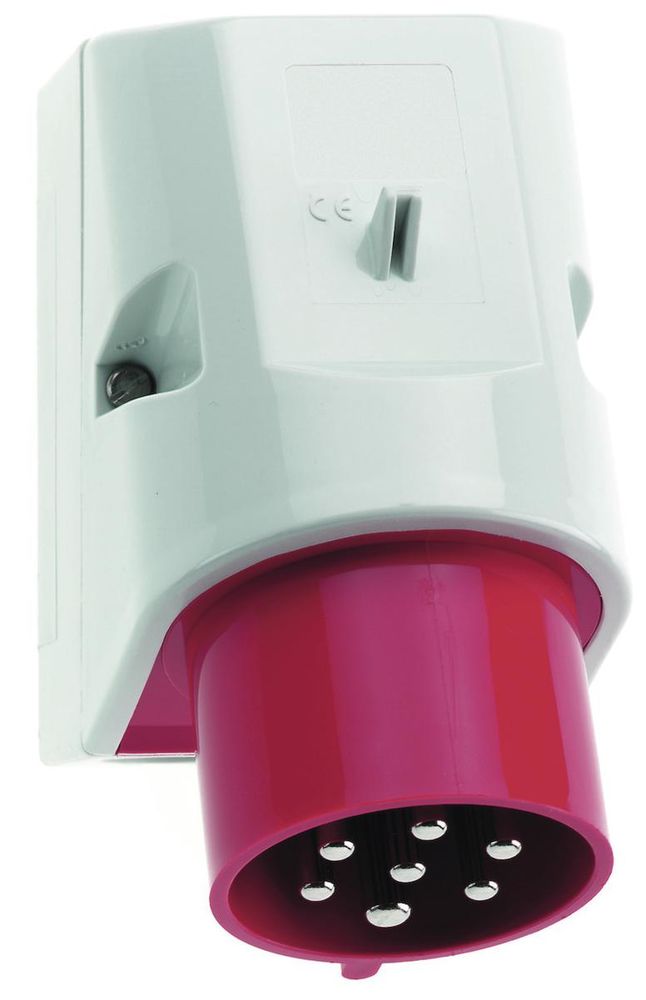

Product information for BALS 24196:

Wall device plug TE
32A 7p (6P+PE) 400V (400V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: 1xM25 top, 2xM25 bottom
Device colour: collar red RAL 3000, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 166 mm, device width: 83 mm, device depth: 130 mm
Other technical properties: The cable entry is open once at the top and closed twice at the bottom, the housing base can be rotated by 180°, there are 4 mounting holes in the housing base for Breaking out
Type: 24196
