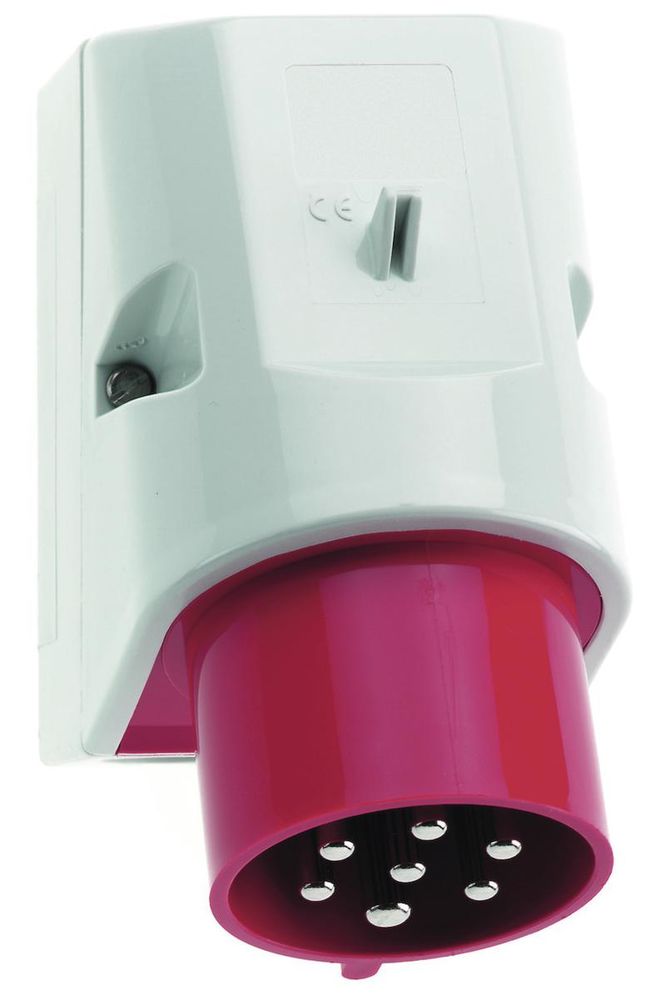

Bals 24194 wall device plug TE 16A 7p 400V 6h IP44 red H/W/D:156x83x123mm

Your rating:
Average rating
Rating for Bals 24194 wall device plug TE 16A 7p 400V 6h IP44 red H/W/D:156x83x123mm
( 0 / 5 ) 0 ratings
BALS 24194
This image may differ from the desired article.
231,36 EUR
( 275,32 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 24194 wall device plug TE 16A 7p 400V 6h IP44 red H/W/D:156x83x123mm
Lieske Part No.:460976
Mfg Part No: 24194
UPC/EAN: 4024941241946
Weight:0.12 kg

Product information for BALS 24194:

Wall device plug TE
16A 7p (6P+PE) 400V (400V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 126x83 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: 1xM25 top, 2xM25 bottom
Device colour: collar red RAL 3000, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 156 mm, device width: 83 mm, device depth: 123 mm
Other technical properties: The cable entry is open once at the top and closed twice at the bottom, the housing base can be rotated by 180°, there are 4 mounting holes in the housing base for Breaking out
Type: 24194


Questions & answers

What is the delivery time of Bals 24194 wall device plug TE 16A 7p 400V 6h IP44 red H/W/D:156x83x123mm?

The article Bals 24194 wall device plug TE 16A 7p 400V 6h IP44 red H/W/D:156x83x123mm is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 24194 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 24194 wall device plug TE 16A 7p 400V 6h IP44 red H/W/D:156x83x123mm always at the best possible price. We can give you a discount of 2% on Bals 24194 wall device plug TE 16A 7p 400V 6h IP44 red H/W/D:156x83x123mm if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
