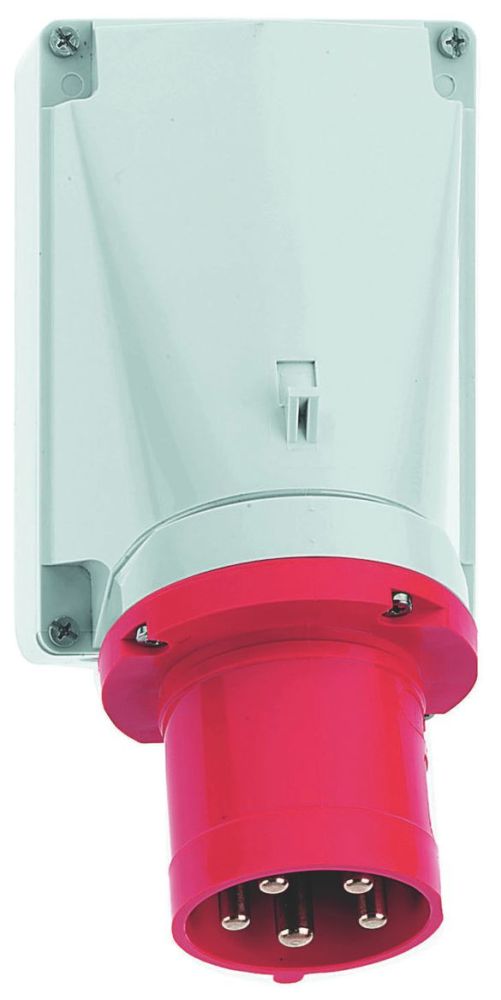

Bals 24134 wall-mounted device plug GT 63 A 5p 400 V 6h IP44 housing size: 170x118
|
378,57 EUR |
|||||||||||
|
( 450,50 EUR incl. VAT ) ≈ £316.86 | ≈ $423.62 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 146617 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 24134 | ||||||||||
| UPC/EAN: | 4024941241342 | ||||||||||
| Weight: | 0.975 kg | ||||||||||
| Type: | 24134 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 24134:
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 170x118 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 16.0 mm²
Housing material: polycarbonate
Connection technology: with screw terminal
Cable entry: 1xM40 at the top, 2xM32 at the bottom
Device colour: collar red RAL 3000, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 259 mm, device width: 118 mm, device depth: 174 mm
Other technical properties: The cable entry is open once at the top and closed twice at the bottom, the housing base can be rotated by 180°
| General | |
| IEC-amperage | 63 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Number of poles | 5 |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Construction type | Other |
| Angle of plug | Angled |
| Material | Plastic |
| Contact material | CuZn |
| Surface finish contacts | Untreated |
| Phase inverter | |
| Military model | |
