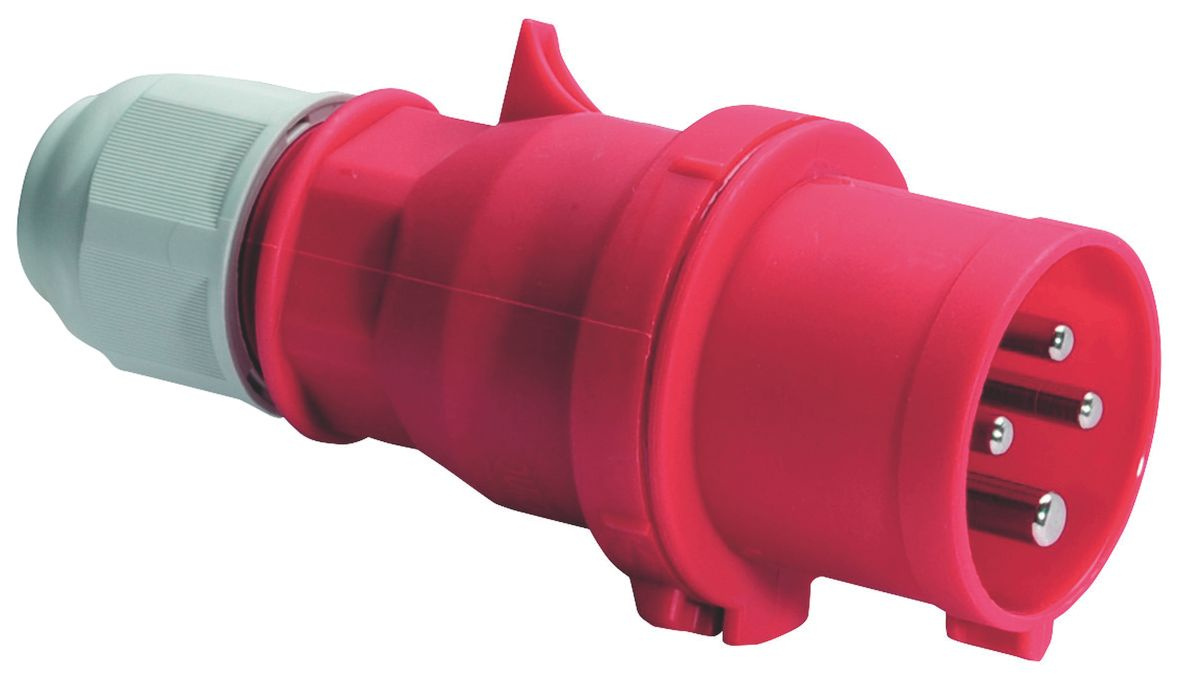

Bals 22055 phase reverser QC with MULTI-GRIP cable gland 32A 4p 400V 6h
|
126,54 EUR |
|||||||||||
|
( 150,58 EUR incl. VAT ) ≈ £105.91 | ≈ $141.60 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 266936 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 22055 | ||||||||||
| UPC/EAN: | 4024941220552 | ||||||||||
| Weight: | 0.268 kg | ||||||||||
| Type: | 22055 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 22055:
32A 4p (3P+PE) 400V (380 - 415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with socket spring terminals
Cable entry: with cable screw connection
Device colour: collar red RAL 3000, cable screw connection dark grey RAL 7012, housing cover dark grey RAL 7012
Device height: 176 mm, device width: 79 mm, device depth: 83 mm
Other technical properties: With MULTI-GRIP cable screw connection and integrated strain relief, the connection of the housing parts is screwless and is made by a snap lock locked. Can be opened using a screwdriver. For cables with a minimum diameter of 11mm to a maximum diameter of 23mm
| General | |
| IEC-amperage | 32 |
| Number of poles | 4 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP54 |
| Connection system | Screw less terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Phase inverter | |
| Military model | |
Questions & answers
What is the delivery time of Bals 22055 phase reverser QC with MULTI-GRIP cable gland 32A 4p 400V 6h?
The article Bals 22055 phase reverser QC with MULTI-GRIP cable gland 32A 4p 400V 6h is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 22055 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 22055 phase reverser QC with MULTI-GRIP cable gland 32A 4p 400V 6h always at the best possible price. We can give you a discount of 2% on Bals 22055 phase reverser QC with MULTI-GRIP cable gland 32A 4p 400V 6h if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 22055 phase reverser QC with MULTI-GRIP cable gland 32A 4p 400V 6h we can offer you a price of 122,74 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
