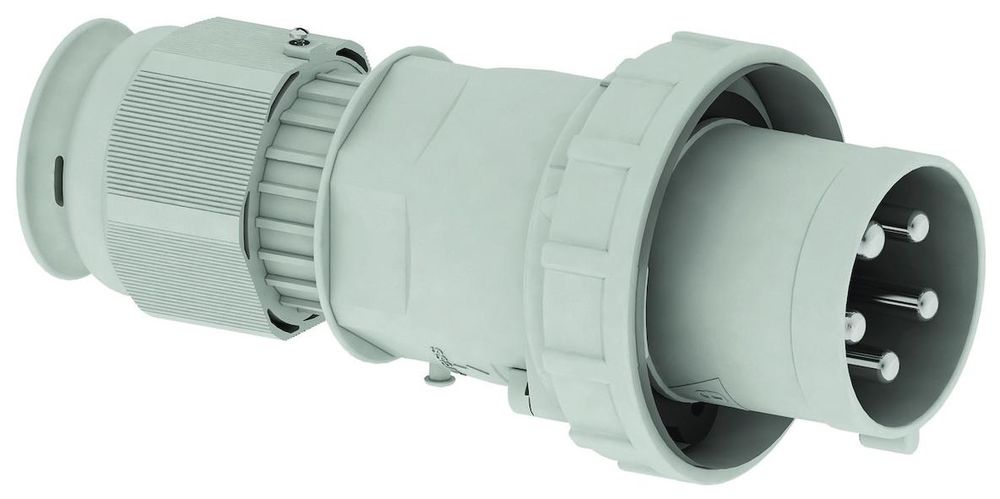

Bals 21966 plug 125A 5p >50V 1h IP67
|
916,84 EUR |
|
|
( 1.091,04 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 466725 |
|---|---|
| Mfg Part No: | 21966 |
| UPC/EAN: | 4024941219662 |
| Weight: | 0.12 kg |
Further CEE form connectors / combinations from BALSFurther products in category CEE form connectors / combinations
All products of BALS
Product information for BALS 21966:
Plug TE
125A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP67
Technical identification color: grey RAL 7035
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 50.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals
Cable entry: with cable gland
Device color: actuating slide grey RAL 7035, bayonet ring grey RAL 7035, housing cover grey RAL 7035, cable gland grey RAL 7035, collar grey RAL 7035
Device height: 273 mm, device width: 126 mm, device depth: 126 mm
Other technical Features: For cables with a min. diameter of 26mm to max. diameter 50mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
Type: 21966
125A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP67
Technical identification color: grey RAL 7035
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 50.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals
Cable entry: with cable gland
Device color: actuating slide grey RAL 7035, bayonet ring grey RAL 7035, housing cover grey RAL 7035, cable gland grey RAL 7035, collar grey RAL 7035
Device height: 273 mm, device width: 126 mm, device depth: 126 mm
Other technical Features: For cables with a min. diameter of 26mm to max. diameter 50mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
Type: 21966
Questions & answers
What is the delivery time of Bals 21966 plug 125A 5p >50V 1h IP67?
The article Bals 21966 plug 125A 5p >50V 1h IP67 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 21966 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 21966 plug 125A 5p >50V 1h IP67 always at the best possible price. We can give you a discount of 2% on Bals 21966 plug 125A 5p >50V 1h IP67 if you choose payment in advance on ordering.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
