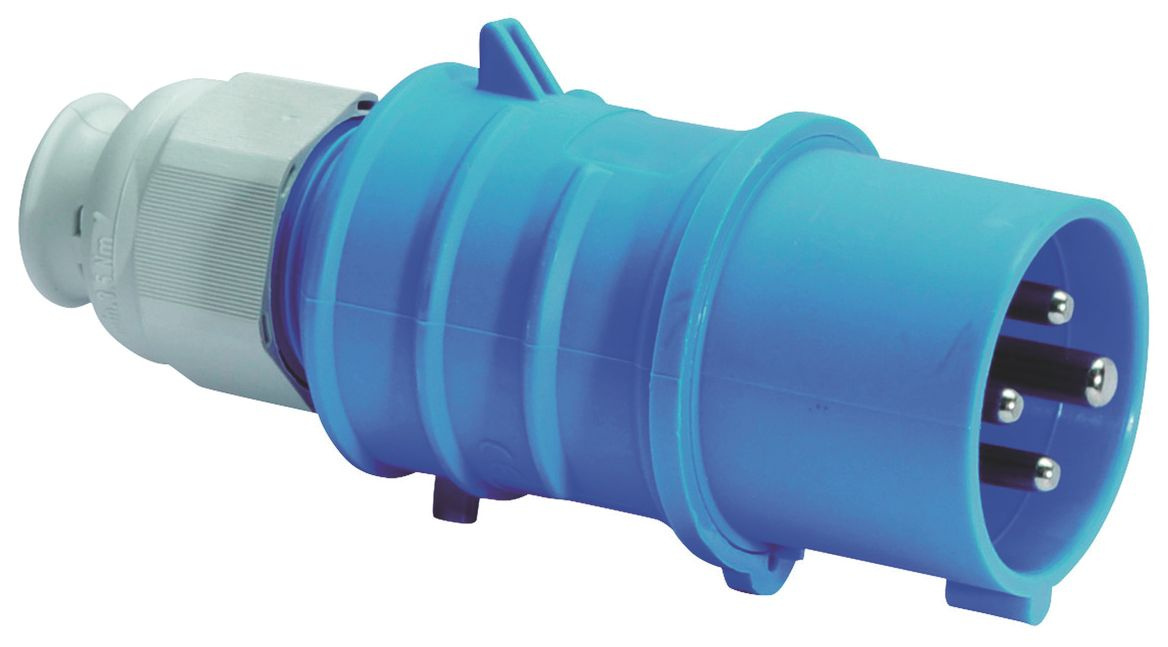

Bals 21841 plug QUICK-CONNECT TE+ with MULTI-GRIP cable gland 32A 4p 230V 9h
|
150,19 EUR |
|||||||||||
|
( 178,73 EUR incl. VAT ) ≈ £125.71 | ≈ $168.06 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 369866 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 21841 | ||||||||||
| UPC/EAN: | 4024941218412 | ||||||||||
| Weight: | 0.243 kg | ||||||||||
| Type: | 21841 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 21841:
32A 4p (3P+PE) 230V (200 - 250V~) 9h IP44
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: with cable gland
Device colour: collar blue RAL 5015, cable gland grey RAL 7035, housing cover blue RAL 5015
Device height: 180 mm, device width: 66 mm, device depth: 79 mm
Other technical properties: For cables with a min. diameter of 11mm to max. diameter of 23mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional Water drainage holes and locking screw
| General | |
| IEC-amperage | 32 |
| Number of poles | 4 |
| Voltage acc. EN 60309-2 | 230 V (50+60 Hz) blue |
| Clock hour position | 9 |
| Identification colour | Blue |
| RAL-number | 5015 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Phase inverter | |
| Military model | |
