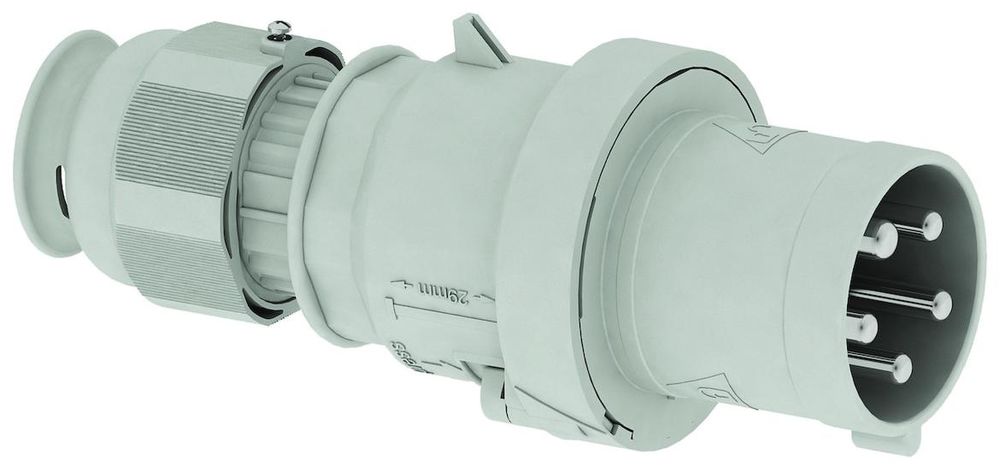

Bals 21785 plug 63A 5p >50V 1h IP44
|
291,46 EUR |
|||||||||||
|
( 346,84 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 1316541 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 21785 | ||||||||||
| UPC/EAN: | 4024941217859 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BALS 21785:
63A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP44
Technical identification colour: grey RAL 7035
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 16.0 mm ²
Housing material: polyamide
Connection technology: screw terminals as box terminals
Cable entry: with cable gland
Device colour: actuating slide grey RAL 7035, housing cover grey RAL 7035, cable gland grey RAL 7035, collar grey RAL 7035
Device height: 234 mm, device width: 97 mm, device depth: 98 mm
Other technical properties: For cables with a min. diameter of 16mm to max. Diameter 36mm, The connection of the housing parts is screwless and is locked by a snap lock. Opening with a screwdriver is possible, With MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
Type: 21785
Questions & answers
What is the delivery time of Bals 21785 plug 63A 5p >50V 1h IP44?
The article Bals 21785 plug 63A 5p >50V 1h IP44 is currently not in stock und muss auftragsbezogen bestellt werden.
According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 21785 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 21785 plug 63A 5p >50V 1h IP44 always at the best possible price. We can give you a discount of 2% on Bals 21785 plug 63A 5p >50V 1h IP44 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 4 pieces of Bals 21785 plug 63A 5p >50V 1h IP44 we can offer you a price of 260,86 EUR per piece. The more you buy, the cheaper the article will be.
You can also send us a price proposal for your desired quantity of Bals 21785 plug 63A 5p >50V 1h IP44 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
