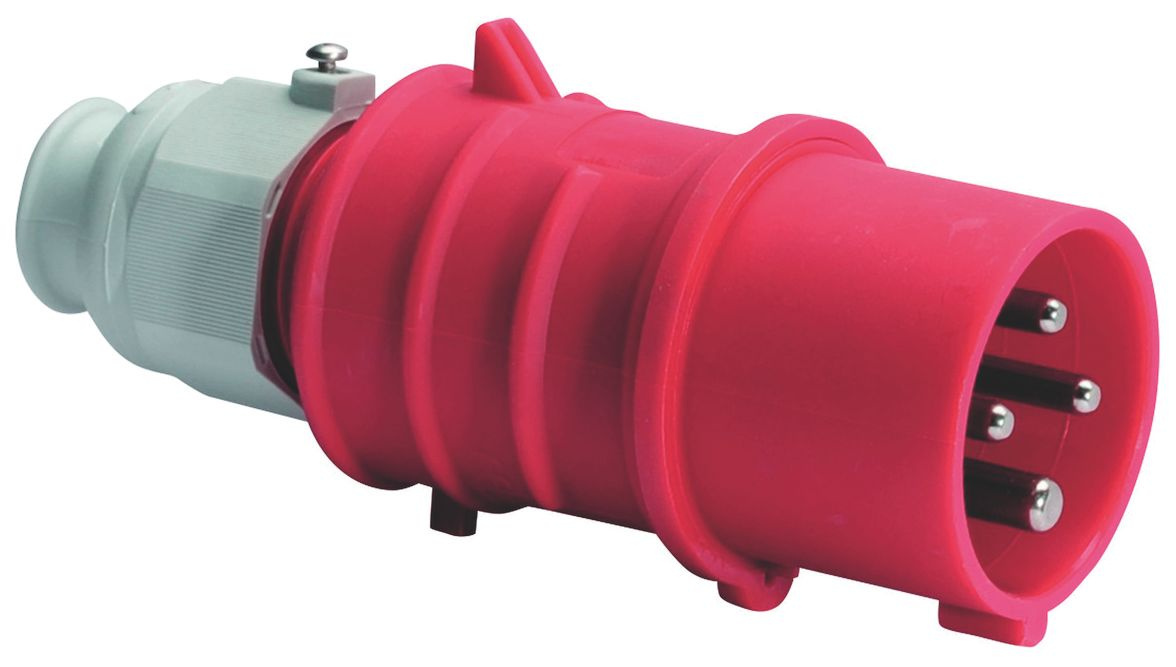

Bals 21687 plug QUICK-CONNECT TE+ with MULTI-GRIP cable gland 16A 4p 400V 6h
|
88,25 EUR |
|||||||||||
|
( 105,02 EUR incl. VAT ) ≈ £73.87 | ≈ $98.75 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 533544 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 21687 | ||||||||||
| UPC/EAN: | 4024941216876 | ||||||||||
| Weight: | 0.144 kg | ||||||||||
| Type: | 21687 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 21687:
16A 4p (3P+PE) 400V (380 - 415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: with cable gland
Device colour: housing cover red RAL 3000, collar red RAL 3000, cable gland grey RAL 7035
Device height: 154 mm, device width: 58 mm, device depth: 66 mm
Other technical properties: For cables with a min. diameter of 8 mm to max. diameter of 18 mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional Water drainage holes and locking screw
| General | |
| IEC-amperage | 16 |
| Number of poles | 4 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Phase inverter | |
| Military model | |
