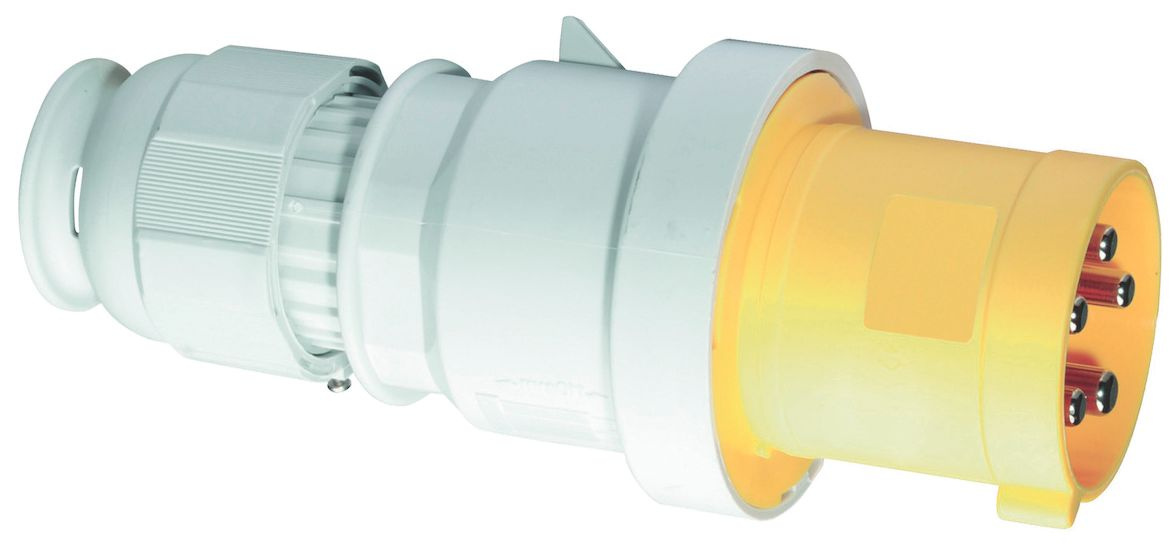

Bals 2153 plug TE m.MULTI-GRIP cable gland 63 A 5p 110 V 4h IP44
|
295,93 EUR |
|||||||||||
|
( 352,16 EUR incl. VAT ) ≈ £247.69 | ≈ $331.15 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 781727 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2153 | ||||||||||
| UPC/EAN: | 4024941021531 | ||||||||||
| Weight: | 0.665 kg | ||||||||||
| Type: | 2153 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 2153:
63A 5p (3P+N+PE) 110V (57/100 - 75/130V~) 4h IP44
Frequency: 50/60Hz
Technical identification colour: yellow RAL 1012
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 16.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals
Cable entry: with cable gland
Device colour: collar yellow RAL 1012, operating slide grey RAL 7035, housing cover grey RAL 7035, cable gland grey RAL 7035
Device height: 234 mm, device width: 97 mm, device depth: 98 mm
Other technical properties: For cables with a min. diameter of 16mm to max. diameter 36mm, the connection of the housing parts is screwless and is made by a Snap lock locked. Can be opened using a screwdriver. With MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
| General | |
| IEC-amperage | 63 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 110 V (50+60 Hz) yellow |
| Clock hour position | 4 |
| Identification colour | Yellow |
| RAL-number | 1012 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Contact material | CuZn |
| Surface finish contacts | Nickel-plated |
| Phase inverter | |
| Military model | |
