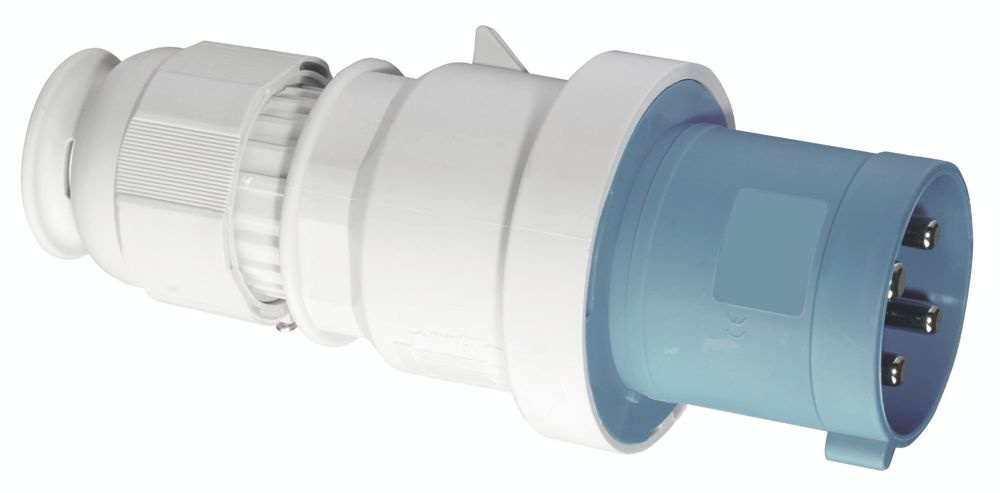

Bals 2150 plug TE m.MULTI-GRIP cable gland 63 A 4p 230 V 9h IP44
|
285,00 EUR |
|||||||||||
|
( 339,15 EUR incl. VAT ) ≈ £238.55 | ≈ $318.92 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 460830 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2150 | ||||||||||
| UPC/EAN: | 4024941021500 | ||||||||||
| Weight: | 0.6 kg | ||||||||||
| Type: | 2150 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 2150:
63A 4p (3P+PE) 230V (200 - 250V~) 9h IP44
Frequency: 50/60Hz
Technical identification color: blue RAL 5015
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 16.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals
Cable entry: with cable gland
Device color: actuating slide gray RAL 7035, collar blue RAL 5015, housing cover gray RAL 7035, cable gland gray RAL 7035
Device height: 234 mm, device width: 97 mm, device depth: 98 mm
Other technical properties: For cables with a min. diameter of 16mm to max. diameter 36mm, the connection of the housing parts is screwless and is locked with a snap lock. Opening with a screwdriver is possible, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
| General | |
| IEC-amperage | 63 |
| Number of poles | 4 |
| Voltage acc. EN 60309-2 | 230 V (50+60 Hz) blue |
| Clock hour position | 9 |
| Identification colour | Blue |
| RAL-number | 5015 |
| Degree of protection (IP) | IP44 |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Contact material | CuZn |
| Surface finish contacts | Nickel-plated |
| Phase inverter | |
| Military model | |
Questions & answers
What is the delivery time of Bals 2150 plug TE m.MULTI-GRIP cable gland 63 A 4p 230 V 9h IP44?
The article Bals 2150 plug TE m.MULTI-GRIP cable gland 63 A 4p 230 V 9h IP44 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 2150 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 2150 plug TE m.MULTI-GRIP cable gland 63 A 4p 230 V 9h IP44 always at the best possible price. We can give you a discount of 2% on Bals 2150 plug TE m.MULTI-GRIP cable gland 63 A 4p 230 V 9h IP44 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Bals 2150 plug TE m.MULTI-GRIP cable gland 63 A 4p 230 V 9h IP44 we can offer you a price of 270,04 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
