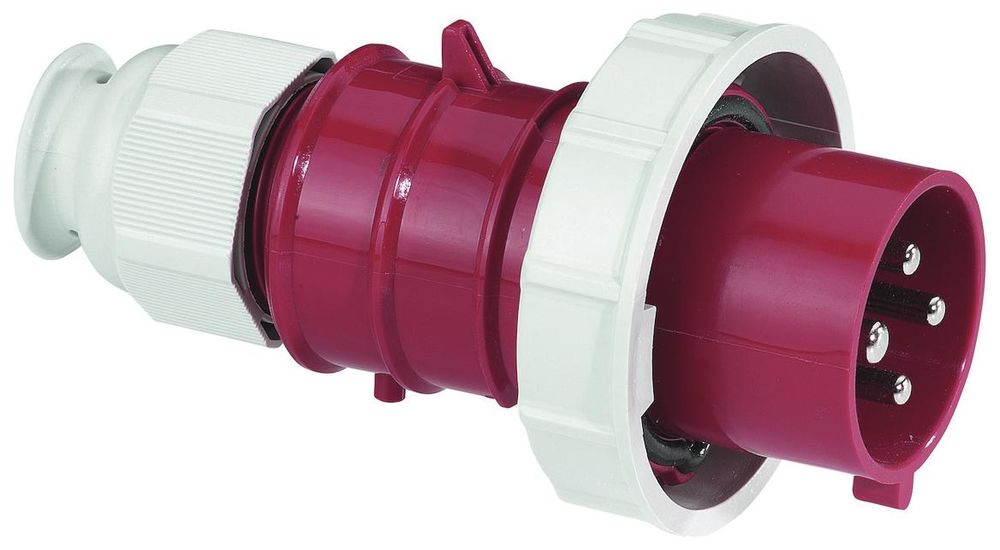

Bals 2148509 Plug QUICK-CONNECT Te 32A 4P 400V to 440V 3H IP67

Your rating:
Average rating
Rating for Bals 2148509 Plug QUICK-CONNECT Te 32A 4P 400V to 440V 3H IP67
( 0 / 5 ) 0 ratings
BALS 2148509
This image may differ from the desired article.
194,04 EUR
( 230,91 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 2148509 Plug QUICK-CONNECT Te 32A 4P 400V to 440V 3H IP67
Lieske Part No.:466926
Mfg Part No: 2148509
UPC/EAN: 4024941059220
Weight:0.12 kg

Product information for BALS 2148509:

Plug QUICK-CONNECT TE
32A 4p (3P+PE) 380 and 440V (380V~(50Hz) 440V~(60Hz) Only for refrigerated containers) 3h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: with cable gland
Device colour: housing cover red RAL 3000, collar red RAL 3000, bayonet ring grey RAL 7035, cable gland grey RAL 7035
Device height: 180 mm, device width: 94 mm, device depth: 94 mm
Other technical properties: For cables with a min. diameter of 11mm to max. diameter 23mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
Type: 2148509


Questions & answers

What is the delivery time of Bals 2148509 Plug QUICK-CONNECT Te 32A 4P 400V to 440V 3H IP67?

The article Bals 2148509 Plug QUICK-CONNECT Te 32A 4P 400V to 440V 3H IP67 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 2148509 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 2148509 Plug QUICK-CONNECT Te 32A 4P 400V to 440V 3H IP67 always at the best possible price. We can give you a discount of 2% on Bals 2148509 Plug QUICK-CONNECT Te 32A 4P 400V to 440V 3H IP67 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
