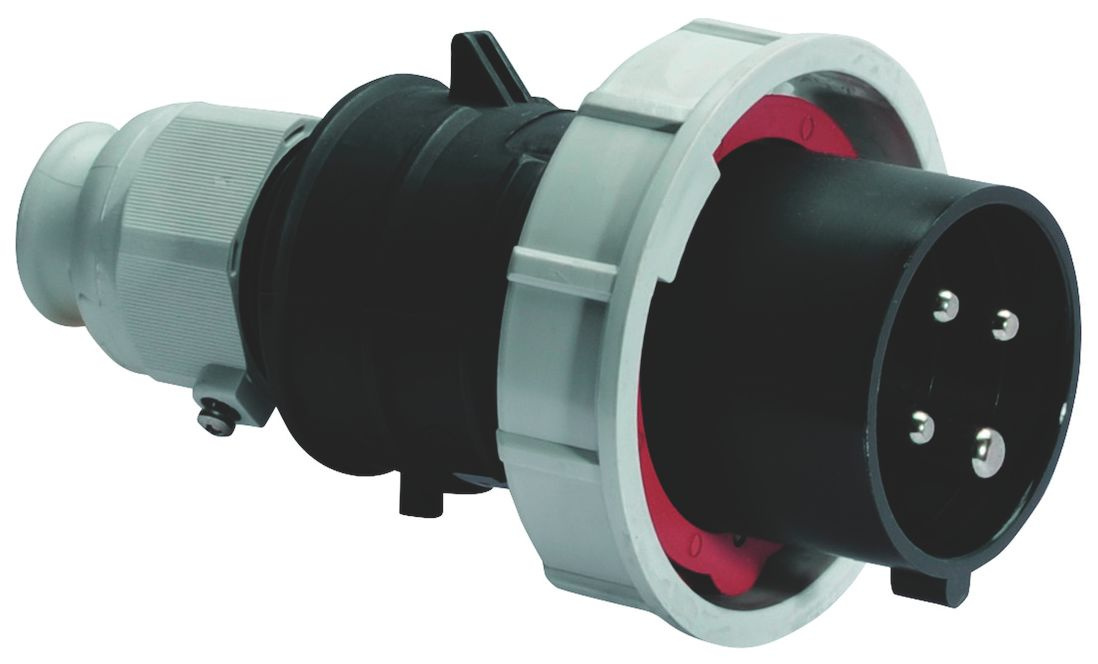

Bals 21350 plug QUICK-CONNECT TE+ with MULTI-GRIP cable gland 16A 4p 500V 7h
|
159,41 EUR |
|||||||||||
|
( 189,70 EUR incl. VAT ) ≈ £133.43 | ≈ $178.38 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 794475 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 21350 | ||||||||||
| UPC/EAN: | 4024941213509 | ||||||||||
| Weight: | 0.175 kg | ||||||||||
| Type: | 21350 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 21350:
16A 4p (3P+PE) 500V (480 - 500V~) 7h IP67
Frequency: 50/60Hz
Technical identification color: black RAL 9005
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: with cable gland
Device color: collar black RAL 9005, bayonet ring gray RAL 7035, cable gland gray RAL 7035, housing cover black RAL 9005
Device height: 149 mm, device width: 79 mm, device depth: 79 mm
Other technical properties: For cables with a min. diameter of 8 mm to max. diameter of 18 mm, with MULTI-GRIP TE Cable gland, integrated strain relief, additional water drainage openings and locking screw
| General | |
| IEC-amperage | 16 |
| Number of poles | 4 |
| Voltage acc. EN 60309-2 | 500 V (50+60 Hz) black |
| Clock hour position | 7 |
| Identification colour | Black |
| RAL-number | 9005 |
| Degree of protection (IP) | IP67 |
| Connection system | Screw less terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Phase inverter | |
| Military model | |
