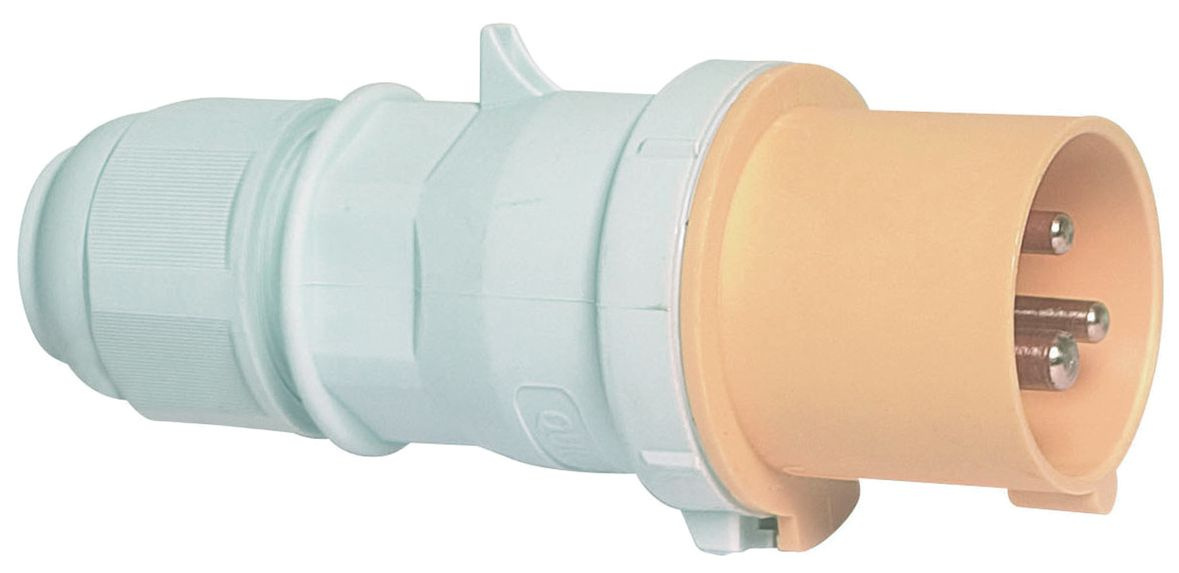

Bals 2125 plug QC m.MULTI-GRIP cable gland 16 A 3-pole 110 V 4h IP44
|
99,18 EUR |
|||||||||||
|
( 118,02 EUR incl. VAT ) ≈ £83.01 | ≈ $110.98 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 237885 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 2125 | ||||||||||
| UPC/EAN: | 4024941021258 | ||||||||||
| Weight: | 0.128 kg | ||||||||||
| Type: | 2125 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 2125:
16A 3p (2P+PE) 110V (100 - 130V~) 4h IP44
Frequency: 50/60Hz
Technical identification color: yellow RAL 1012
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with socket spring clamps
Cable entry: with cable gland
Device color: collar yellow RAL 1012, housing cover gray RAL 7035, cable gland gray RAL 7035
Device height: 134 mm, device width: 53 mm, device depth: 62 mm
Other technical properties: With MULTI-GRIP cable gland and integrated strain relief, the connection of the housing parts is screwless and is locked with a snap lock. Opening with a screwdriver is possible, for cables with a min. diameter of 8mm to max. diameter of 18mm
| General | |
| IEC-amperage | 16 |
| Number of poles | 3 |
| Voltage acc. EN 60309-2 | 110 V (50+60 Hz) yellow |
| Clock hour position | 4 |
| Identification colour | Yellow |
| RAL-number | 1012 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Phase inverter | |
| Military model | |
