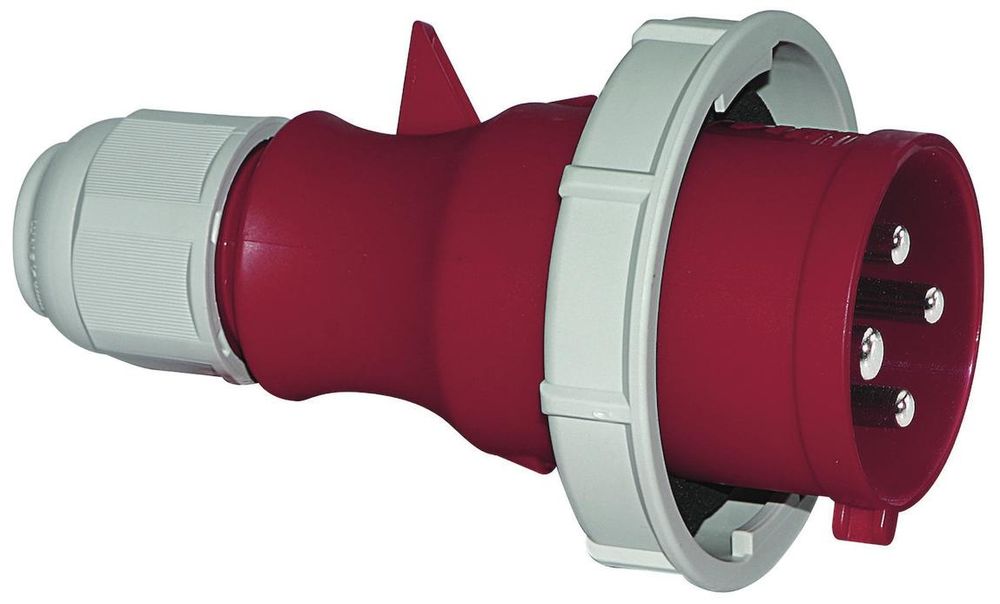

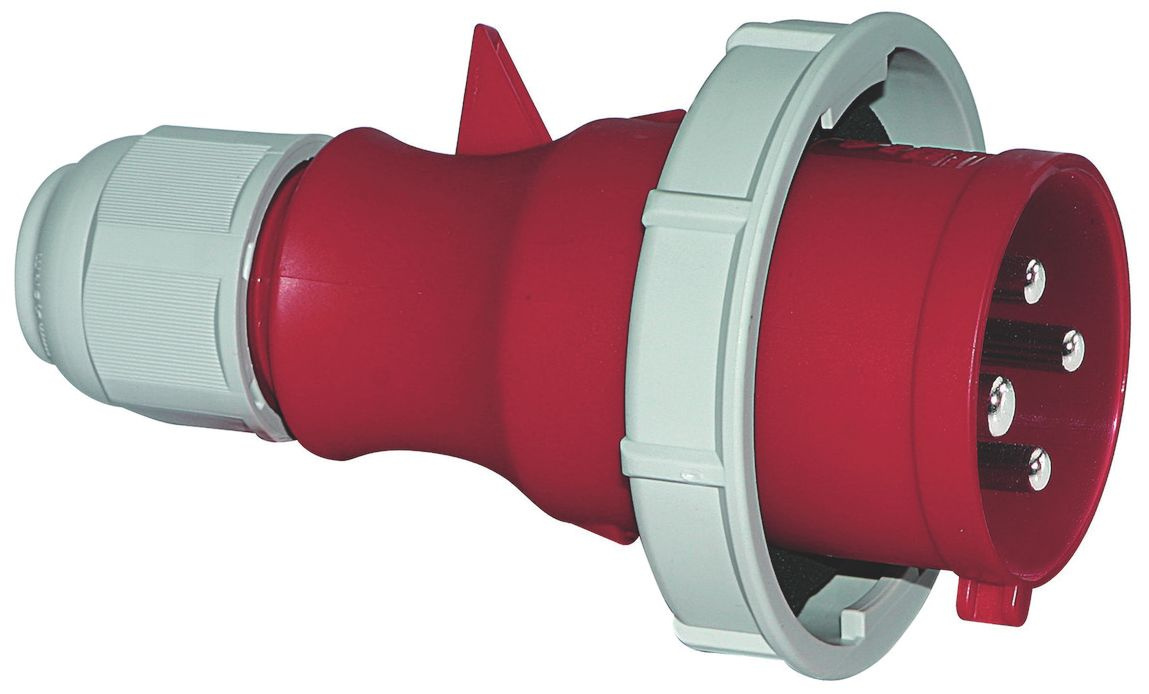

Bals 21232-TLQ plug 32A 4p 380V 3h 50Hz 440V 60Hz IP67

Your rating:
Average rating
Rating for Bals 21232-TLQ plug 32A 4p 380V 3h 50Hz 440V 60Hz IP67
( 0 / 5 ) 0 ratings
BALS 21232-TLQ
This image may differ from the desired article.
225,92 EUR
( 268,84 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 21232-TLQ plug 32A 4p 380V 3h 50Hz 440V 60Hz IP67
Lieske Part No.:468290
Mfg Part No: 21232-TLQ
UPC/EAN: 4024941943291
Weight:0.12 kg

Product information for BALS 21232-TLQ:

QUICK-CONNECT plug with MULTI-GRIP screw connection TLQ version
32A 4p (3P+PE) 380 and 440V (380V~(50Hz) 440V~(60Hz) only for refrigerated containers) 3h IP67
Frequency: 50/60Hz
Technical identification color: red RAL 3000
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: with cable gland
Device color: housing red RAL 3000, bayonet ring gray RAL 7035, cable gland gray RAL 7035
Device height: 170 mm, device width: 94 mm, device depth: 94 mm
Other technical properties: the housing is one-piece, with MULTI-GRIP Cable gland and integrated strain relief, for cables with a min. diameter of 11mm to max. diameter of 23mm
Type: 21232-TLQ


Questions & answers

What is the delivery time of Bals 21232-TLQ plug 32A 4p 380V 3h 50Hz 440V 60Hz IP67?

The article Bals 21232-TLQ plug 32A 4p 380V 3h 50Hz 440V 60Hz IP67 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 21232-TLQ to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 21232-TLQ plug 32A 4p 380V 3h 50Hz 440V 60Hz IP67 always at the best possible price. We can give you a discount of 2% on Bals 21232-TLQ plug 32A 4p 380V 3h 50Hz 440V 60Hz IP67 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
