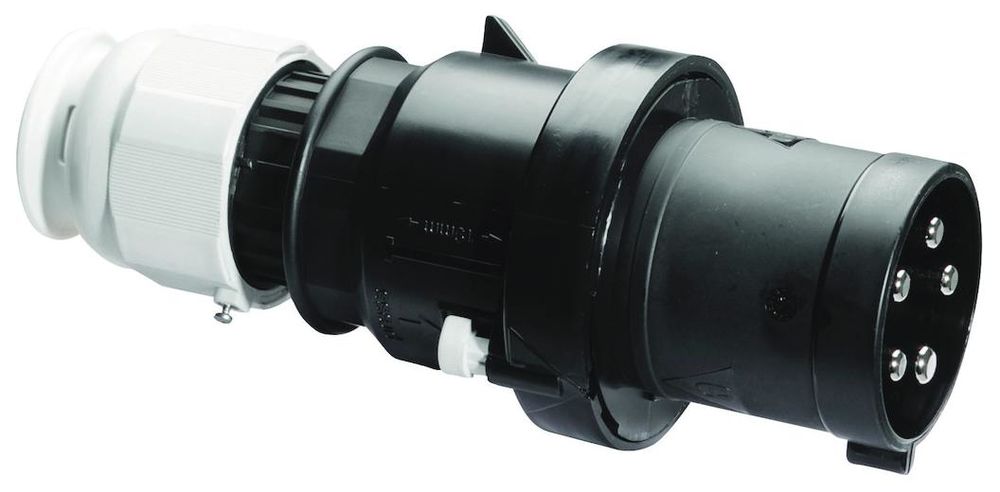

Bals plug TC 21167, 63A 5p 7h 277/480V-288/500V 50/60Hz IP44

Your rating:
Average rating
Rating for Bals plug TC 21167, 63A 5p 7h 277/480V-288/500V 50/60Hz IP44
( 4.6 / 5 ) 8 ratings
BALS 21167
This image may differ from the desired article.
291,46 EUR
( 346,84 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals plug TC 21167, 63A 5p 7h 277/480V-288/500V 50/60Hz IP44
Lieske Part No.:975772
Mfg Part No: 21167
UPC/EAN: 4024941211673
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
5269,60 EUR
10247,74 EUR
15225,88 EUR
20204,02 EUR

Product information for BALS 21167:

Plug TE
63A 5p (3P+N+PE) 500V (277/480 - 288/500V~) 7h IP44
Frequency: 50/60Hz
Technical identification colour: black RAL 9005
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 16.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals
Cable entry: with cable gland
Device colour: operating slide grey RAL 7035, collar black RAL 9005, cable gland grey RAL 7035, housing cover black RAL 9005
Device height: 234 mm, device width: 97 mm, device depth: 98 mm
Other technical properties: For cables with a min. diameter of 16mm to max. diameter 36mm, the connection of the housing parts is screwless and is made by a Snap lock locked. Can be opened using a screwdriver. With MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
