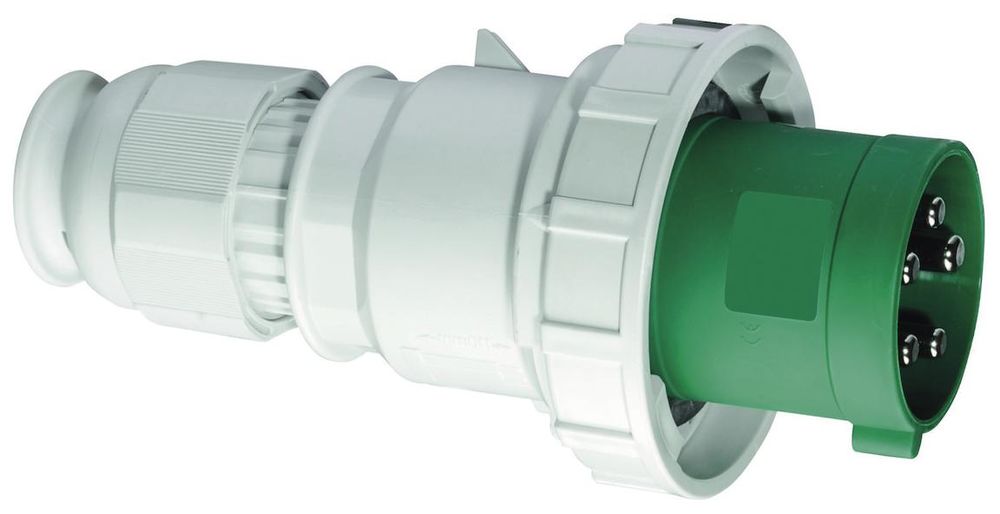

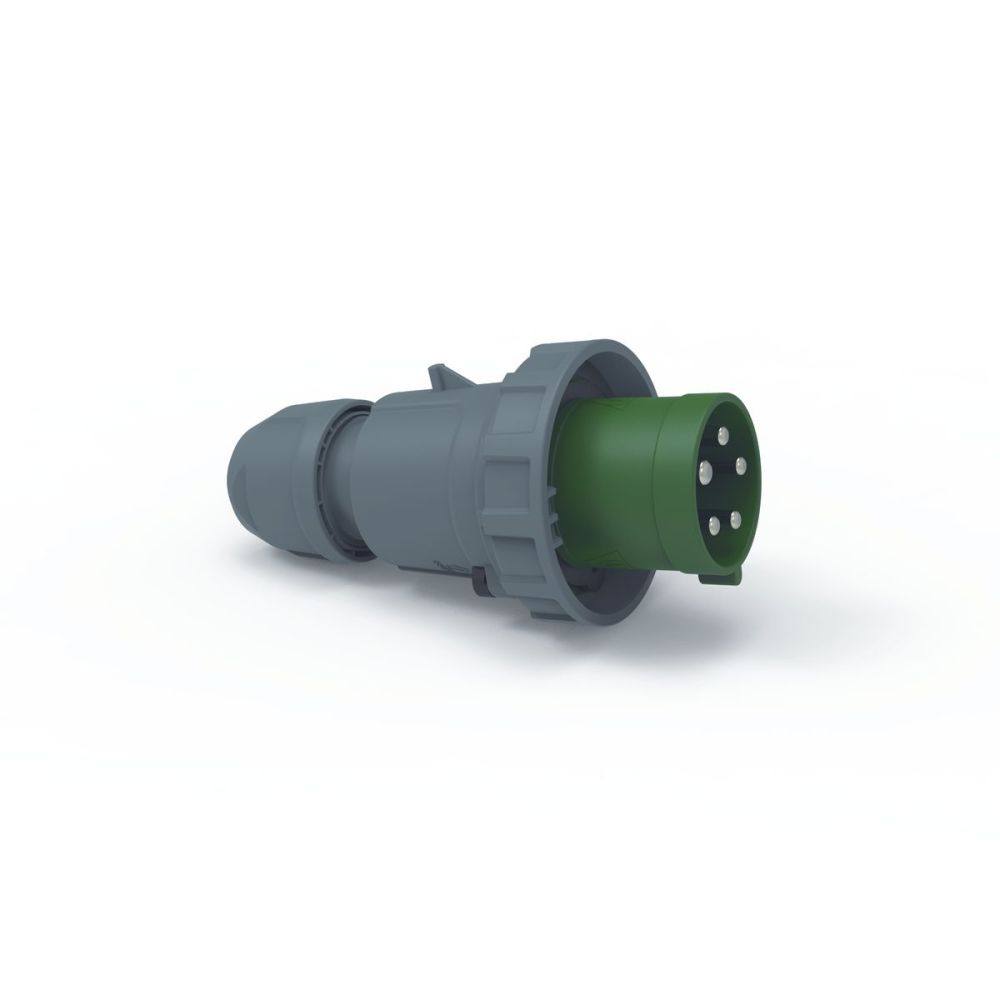

Bals 21163 plug TE 63A 5p >50V >300-500Hz 2h IP67 green
318,48 EUR |
|
( 378,99 EUR incl. VAT ) plus delivery charges |
|
Delivery time on requestinfo_outline | |
Lieske Part No.: | 460918 |
---|---|
Mfg Part No: | 21163 |
UPC/EAN: | 4024941211635 |
Weight: | 0.12 kg |
Product information for BALS 21163:
63A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: over 300 up to and including 500Hz
Technical identification color: green RAL 6002
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 16.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals
Cable entry: with cable gland
Device color: actuating slide gray RAL 7035, bayonet ring gray RAL 7035, housing cover gray RAL 7035, cable gland gray RAL 7035, collar green RAL 6002
Device height: 234 mm, device width: 114 mm, device depth: 114 mm
Other technical properties: For cables with a min. diameter of 16mm to max. diameter 36mm, The connection of the housing parts is screwless and is locked by a snap lock. Opening with a screwdriver is possible, With MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
Type: 21163
