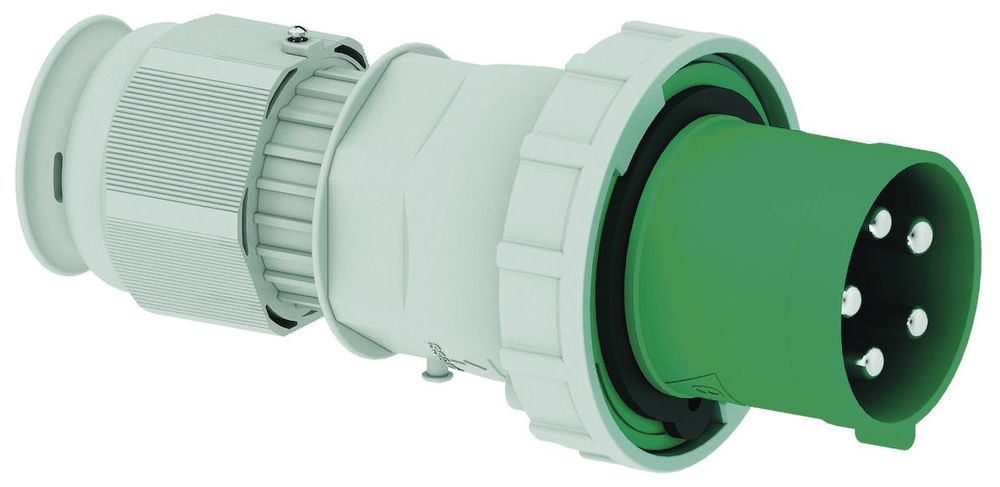

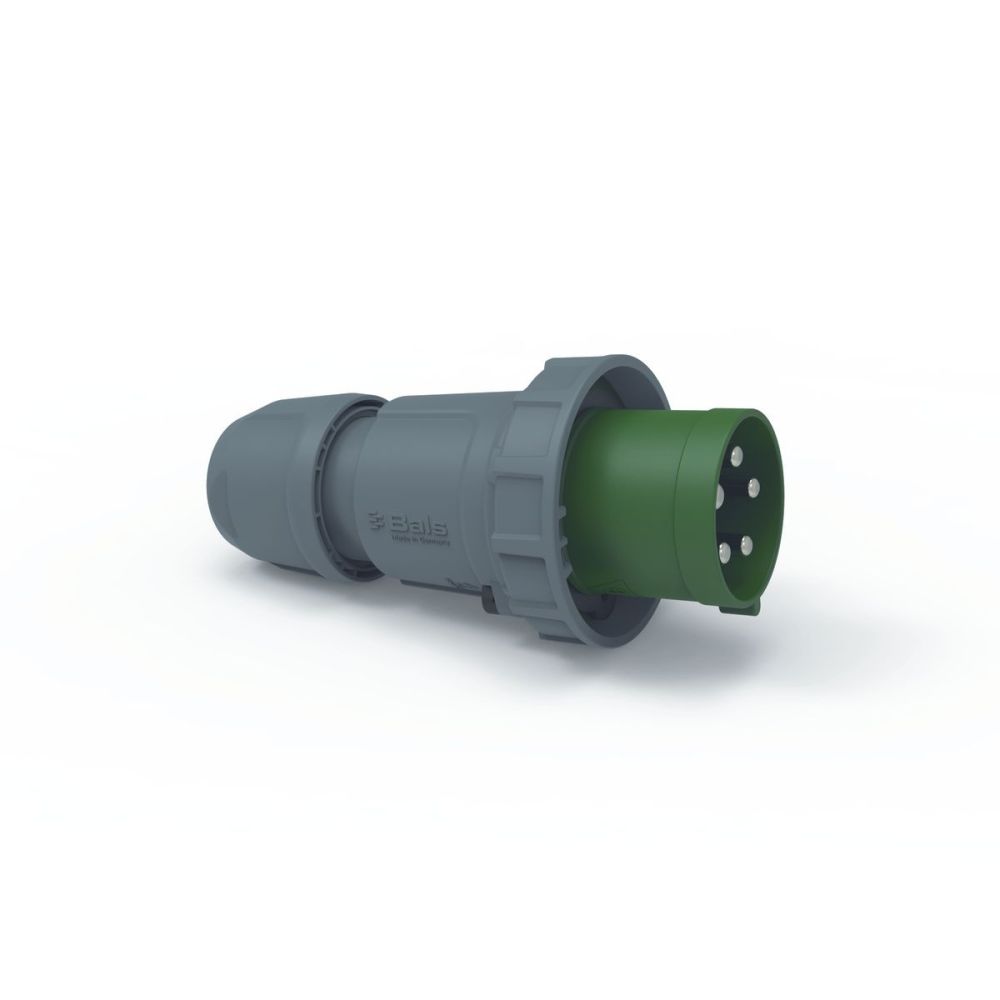

Bals 21156 plug TE 125A 5p >50V >300-500Hz 2h IP67 green

Your rating:
Average rating
Rating for Bals 21156 plug TE 125A 5p >50V >300-500Hz 2h IP67 green
( 0 / 5 ) 0 ratings
BALS 21156
This image may differ from the desired article.
916,84 EUR
( 1.091,04 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 21156 plug TE 125A 5p >50V >300-500Hz 2h IP67 green
Lieske Part No.:460879
Mfg Part No: 21156
UPC/EAN: 4024941211567
Weight:0.12 kg

Product information for BALS 21156:

Plug TE
125A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP67
Frequency: over 300 up to and including 500Hz
Technical identification color: green RAL 6002
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 50.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals
Cable entry: with cable gland
Device color: actuating slide gray RAL 7035, bayonet ring gray RAL 7035, housing cover gray RAL 7035, cable gland gray RAL 7035, collar green RAL 6002
Device height: 273 mm, device width: 126 mm, device depth: 126 mm
Other technical properties: For cables with a min. diameter of 26mm to max. Diameter 50mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
Type: 21156


Questions & answers

What is the delivery time of Bals 21156 plug TE 125A 5p >50V >300-500Hz 2h IP67 green?

The article Bals 21156 plug TE 125A 5p >50V >300-500Hz 2h IP67 green is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 21156 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 21156 plug TE 125A 5p >50V >300-500Hz 2h IP67 green always at the best possible price. We can give you a discount of 2% on Bals 21156 plug TE 125A 5p >50V >300-500Hz 2h IP67 green if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
