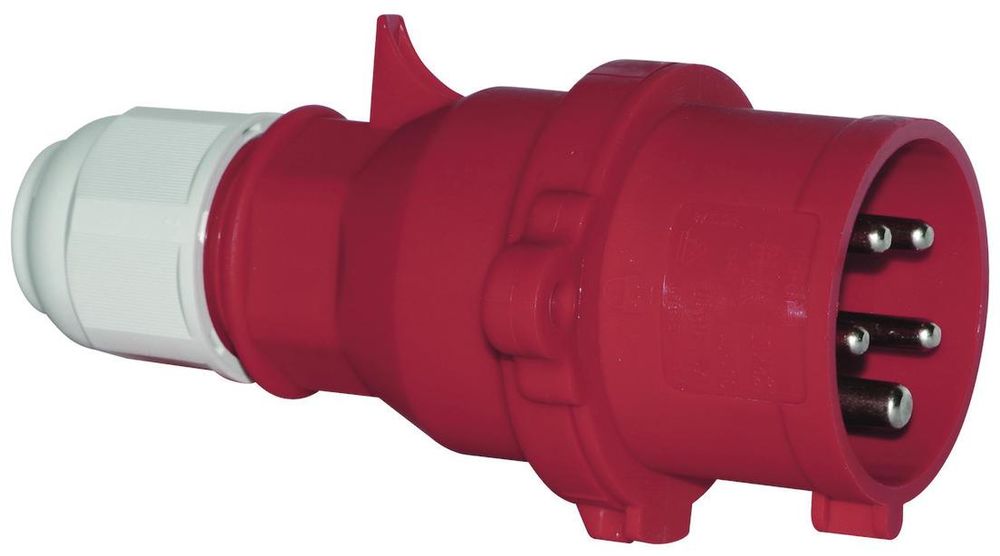

Bals 210951 plug 32 5 400 6H IP44 Ni QUICK-CONNECT Kf Multi-Grip lockable
|
131,29 EUR |
|||||||||||
|
( 156,24 EUR incl. VAT ) ≈ £109.89 | ≈ $146.91 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 1323435 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 210951 | ||||||||||
| UPC/EAN: | 4024941197434 | ||||||||||
| Weight: | 0.305 kg | ||||||||||
| Type: | 210951 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 210951:
32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: with cable gland
Device colour: housing cover red RAL 3000, collar red RAL 3000, cable gland grey RAL 7035
Device height: 178 mm, device width: 92 mm, device depth: 88 mm
Other technical properties: With MULTI-GRIP cable gland and integrated strain relief, the connection of the housing parts is screwless and is made by a snap lock locked. Can be opened using a screwdriver. The plug can be locked with the coupling item no. 310635 and the U-lock item no. 580642. For cables with a minimum diameter of 11mm to a maximum diameter of 23mm.
| General | |
| IEC-amperage | 32 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Phase inverter | |
| Military model | |
