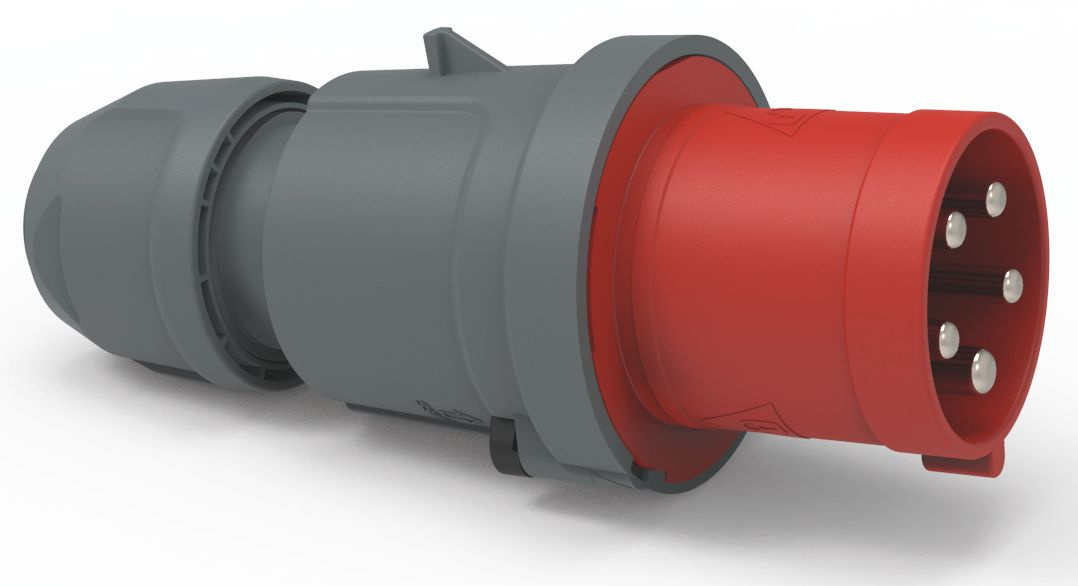

Bals 210765 plug QUICK-CONNECT TE+ with MULTI-GRIP cable gland 63A 5p 400V 6h
|
264,00 EUR |
|||||||||||
|
( 314,16 EUR incl. VAT ) ≈ £220.97 | ≈ $295.42 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: 3 pieces | |||||||||||
| Lieske Part No.: | 321062 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 210765 | ||||||||||
| UPC/EAN: | 4024941145183 | ||||||||||
| Weight: | 0.72 kg | ||||||||||
| Type: | 210765 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 210765:
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 16.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with box terminals
Cable entry: with cable gland
Device colour: actuating slide grey RAL 7035, housing cover red RAL 3000, collar red RAL 3000, cable gland grey RAL 7035
Device height: 234 mm, device width: 97 mm, device depth: 98 mm
Other technical properties: For cables with a min. diameter of 16mm to max. diameter 36mm, the connection The housing parts are screwless and are locked in place with a snap lock. Opening with a screwdriver is possible. With MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
| General | |
| IEC-amperage | 63 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Contact material | CuZn |
| Surface finish contacts | Nickel-plated |
| Phase inverter | |
| Military model | |
Questions & answers
What is the delivery time of Bals 210765 plug QUICK-CONNECT TE+ with MULTI-GRIP cable gland 63A 5p 400V 6h?
The article Bals 210765 plug QUICK-CONNECT TE+ with MULTI-GRIP cable gland 63A 5p 400V 6h is currently in stock
According to our experience the article is ready for dispatch within 5 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 210765 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 210765 plug QUICK-CONNECT TE+ with MULTI-GRIP cable gland 63A 5p 400V 6h always at the best possible price. We can give you a discount of 2% on Bals 210765 plug QUICK-CONNECT TE+ with MULTI-GRIP cable gland 63A 5p 400V 6h if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 4 pieces of Bals 210765 plug QUICK-CONNECT TE+ with MULTI-GRIP cable gland 63A 5p 400V 6h we can offer you a price of 226,38 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
