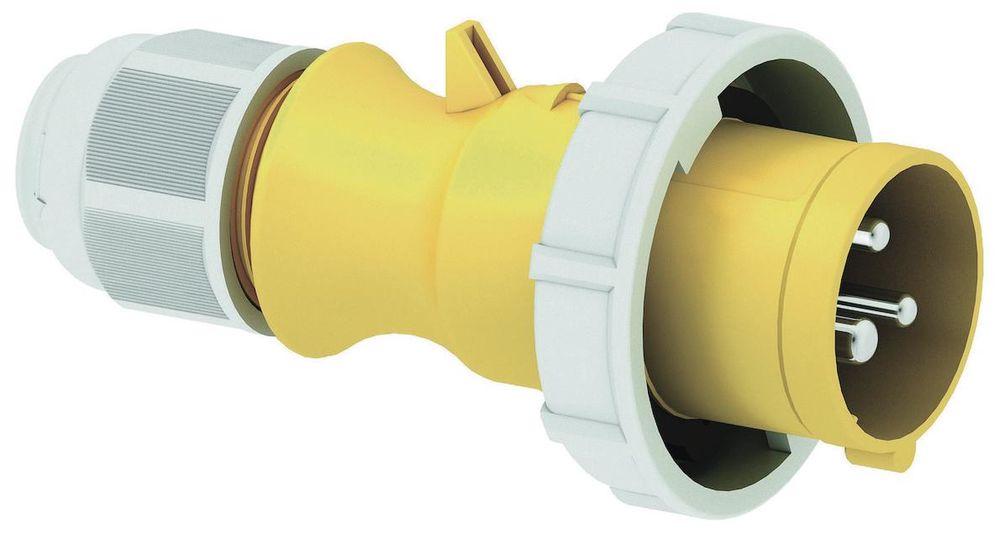

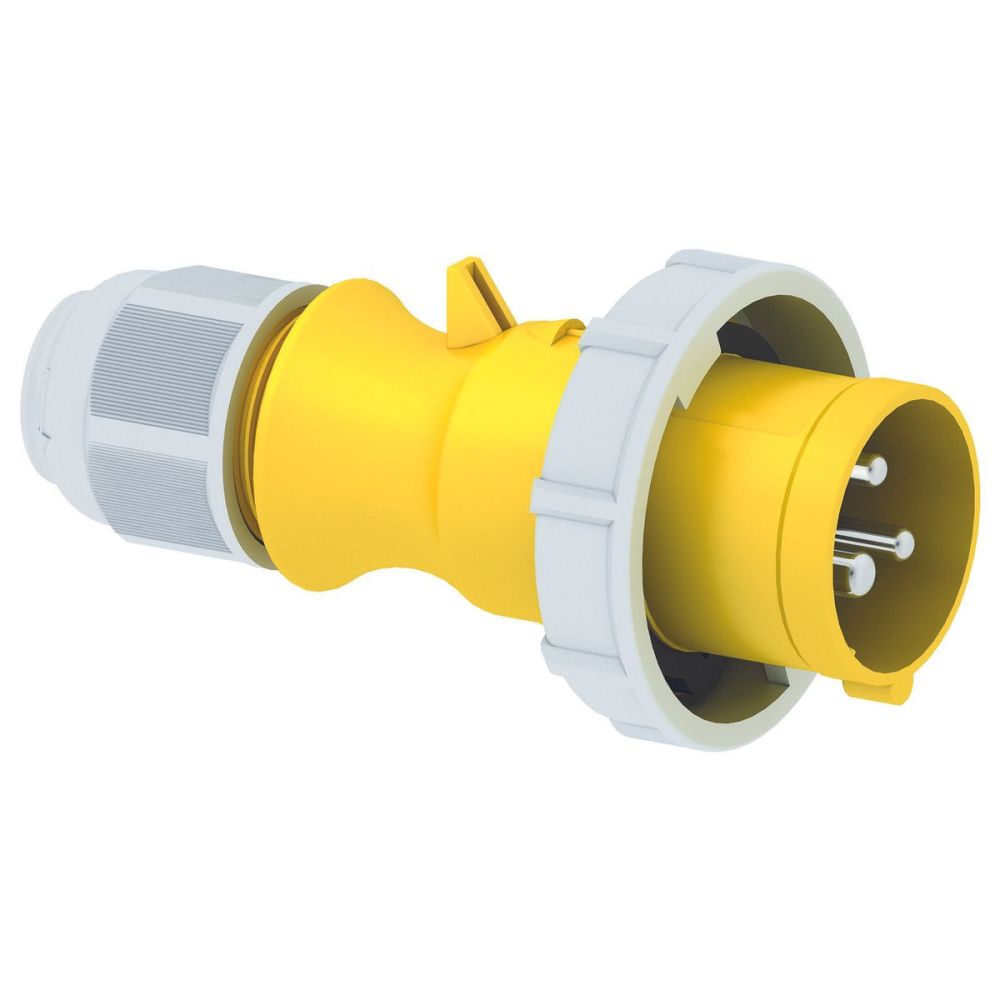

Bals 210575 plug MULTI-GRIP QUICK-CONNECT
|
120,27 EUR |
|||||||||||
|
( 143,12 EUR incl. VAT ) ≈ £100.67 | ≈ $134.58 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 289775 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 210575 | ||||||||||
| UPC/EAN: | 4024941109758 | ||||||||||
| Weight: | 0.135 kg | ||||||||||
| Type: | 210575 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 210575:
16A 3p (2P+PE) 110V (100 - 130V~) 4h IP67
Frequency: 50/60Hz
Technical identification color: yellow RAL 1012
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 2.5 mm²
Housing material: polyamide
Connection technology: with screw terminal
Cable entry: with cable screw connection
Device color: housing yellow RAL 1012, bayonet ring gray RAL 7035, cable screw connection gray RAL 7035
Device height: 140 mm, device width: 70 mm, device depth: 70 mm
Other technical properties: The housing is one-piece, with MULTI-GRIP cable screw connection and integrated strain relief, for cables with a min. diameter of 8 mm to max. diameter of 18 mm
| General | |
| IEC-amperage | 16 |
| Number of poles | 3 |
| Voltage acc. EN 60309-2 | 110 V (50+60 Hz) yellow |
| Clock hour position | 4 |
| Identification colour | Yellow |
| RAL-number | 1012 |
| Connection system | Screwed terminal |
| Cable entry | Swivel |
| Angle of plug | Straight |
| Material | Plastic |
| Phase inverter | |
| Military model | |
Questions & answers
What is the delivery time of Bals 210575 plug MULTI-GRIP QUICK-CONNECT?
The article Bals 210575 plug MULTI-GRIP QUICK-CONNECT is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 210575 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 210575 plug MULTI-GRIP QUICK-CONNECT always at the best possible price. We can give you a discount of 2% on Bals 210575 plug MULTI-GRIP QUICK-CONNECT if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 210575 plug MULTI-GRIP QUICK-CONNECT we can offer you a price of 113,96 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
