Bals 210238 Plug 32A 5P >50V 1H IP44
|
165,63 EUR |
|
|
( 197,10 EUR incl. VAT ) plus delivery charges |
|
| Delivery time on requestinfo_outline | |
| Lieske Part No.: | 466939 |
|---|---|
| Mfg Part No: | 210238 |
| UPC/EAN: | 4024941060325 |
| Weight: | 0.12 kg |
Further CEE form connectors / combinations from BALSFurther products in category CEE form connectors / combinations
All products of BALS
Product information for BALS 210238:

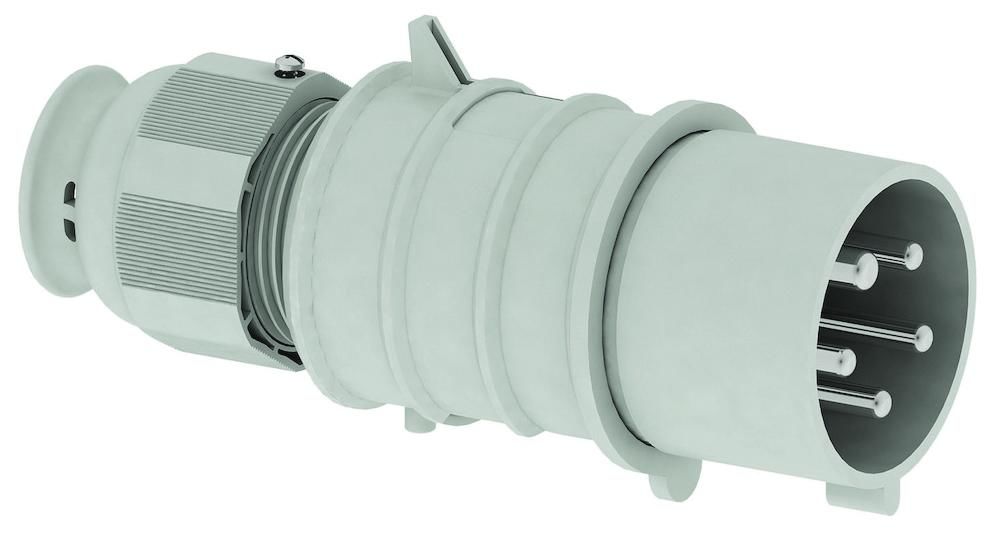

Plug QUICK-CONNECT TE
32A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP44
Technical identification colour: grey RAL 7035
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: with cable gland
Device colour: housing cover grey RAL 7035, cable gland grey RAL 7035, collar grey RAL 7035
Device height: 181 mm, device width: 72 mm, device depth: 87 mm
Other technical properties: For cables with a min. diameter of 13mm to max. diameter 27mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
Type: 210238
32A 5p (3P+N+PE) >50V grey (> 50V - All nominal voltages and/or frequencies not covered by other arrangements. This time setting can also be used in special applications where a distinction from standardized positions is required.) 1h IP44
Technical identification colour: grey RAL 7035
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: with cable gland
Device colour: housing cover grey RAL 7035, cable gland grey RAL 7035, collar grey RAL 7035
Device height: 181 mm, device width: 72 mm, device depth: 87 mm
Other technical properties: For cables with a min. diameter of 13mm to max. diameter 27mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw
Type: 210238
