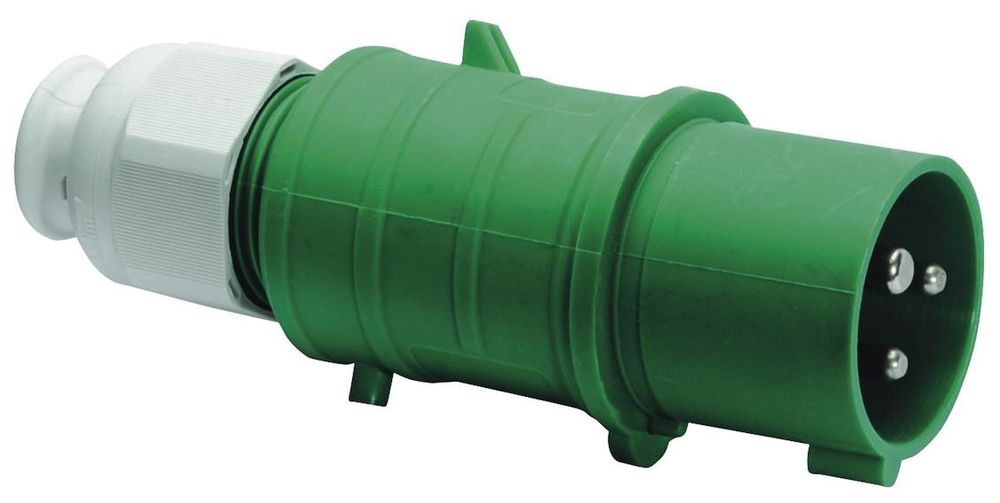

BALS 210186 32A Plug, Quick Connect 3-pin 2h> 50V IP44

Your rating:
Average rating
Rating for BALS 210186 32A Plug, Quick Connect 3-pin 2h> 50V IP44
( 4.5 / 5 ) 8 ratings
BALS 210186
This image may differ from the desired article.
124,25 EUR
( 147,86 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x BALS 210186 32A Plug, Quick Connect 3-pin 2h> 50V IP44
Lieske Part No.:947574
Mfg Part No: 210186
UPC/EAN: 4024941100236
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
6114,93 EUR
12105,61 EUR
2496,29 EUR
3686,98 EUR

Product information for BALS 210186:

Plug QUICK-CONNECT TE
32A 3p (2P+PE) >50V green >300-500Hz (> 50V~) 2h IP44
Frequency: over 300 up to and including 500Hz
Technical identification color: green RAL 6002
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 6.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with cage clamps
Cable entry: with cable gland
Device color: cable gland gray RAL 7035, housing cover green RAL 6002, collar green RAL 6002
Device height: 180 mm, device width: 66 mm, device depth: 79 mm
Other technical properties: For cables with a min. diameter of 11mm to max. diameter of 23mm, with MULTI-GRIP TE cable gland, integrated strain relief, additional water drainage openings and locking screw


Questions & answers

What is the delivery time of BALS 210186 32A Plug, Quick Connect 3-pin 2h> 50V IP44?

The article BALS 210186 32A Plug, Quick Connect 3-pin 2h> 50V IP44 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 210186 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you BALS 210186 32A Plug, Quick Connect 3-pin 2h> 50V IP44 always at the best possible price. We can give you a discount of 2% on BALS 210186 32A Plug, Quick Connect 3-pin 2h> 50V IP44 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 6 pieces of BALS 210186 32A Plug, Quick Connect 3-pin 2h> 50V IP44 we can offer you a price of 114,93 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of BALS 210186 32A Plug, Quick Connect 3-pin 2h> 50V IP44 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
