Bals 17554 wall socket that can be switched off, locked, rated 63A 5p 400V 6h IP67

Your rating:
Average rating
Rating for Bals 17554 wall socket that can be switched off, locked, rated 63A 5p 400V 6h IP67
( 4.8 / 5 ) 8 ratings
BALS 17554

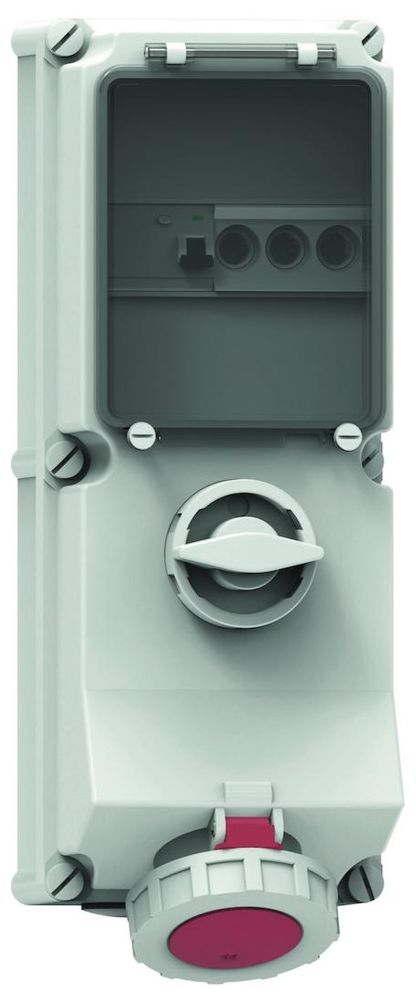

This image may differ from the desired article.
2.170,48 EUR
( 2.582,87 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 17554 wall socket that can be switched off, locked, rated 63A 5p 400V 6h IP67
Lieske Part No.:1315904
Mfg Part No: 17554
UPC/EAN: 4024941175548
Weight:0.12 kg

Product information for BALS 17554:

Wall socket TE switchable, locked, fused
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 460x180 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polycarbonate
Connection technology: screw terminals as box terminals with Kontex contact
Fuse: D0 fuse Residual current circuit
breaker: FI 63/0.03A 4p
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device colour: operating flap smoke topaz, hinged lid red RAL 3000, bayonet ring grey RAL 7035, Housing screws grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035, switch knob grey RAL 7035
Device height: 503 mm, device width: 180 mm, device depth: 192 mm
Other technical properties: The cable entry is open once at the top and twice at the bottom, Lockable in 0 position for up to 4 padlocks with a shackle diameter of up to 7mm, A fuse base D 02 3-pin is available under the operating flap, With built-in residual current circuit breaker 63/0.03A 4-pin
Type: 17554


Questions & answers

What is the delivery time of Bals 17554 wall socket that can be switched off, locked, rated 63A 5p 400V 6h IP67?

The article Bals 17554 wall socket that can be switched off, locked, rated 63A 5p 400V 6h IP67 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 17554 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 17554 wall socket that can be switched off, locked, rated 63A 5p 400V 6h IP67 always at the best possible price. We can give you a discount of 2% on Bals 17554 wall socket that can be switched off, locked, rated 63A 5p 400V 6h IP67 if you choose payment in advance on ordering.

You can also send us a price proposal for your desired quantity of Bals 17554 wall socket that can be switched off, locked, rated 63A 5p 400V 6h IP67 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
