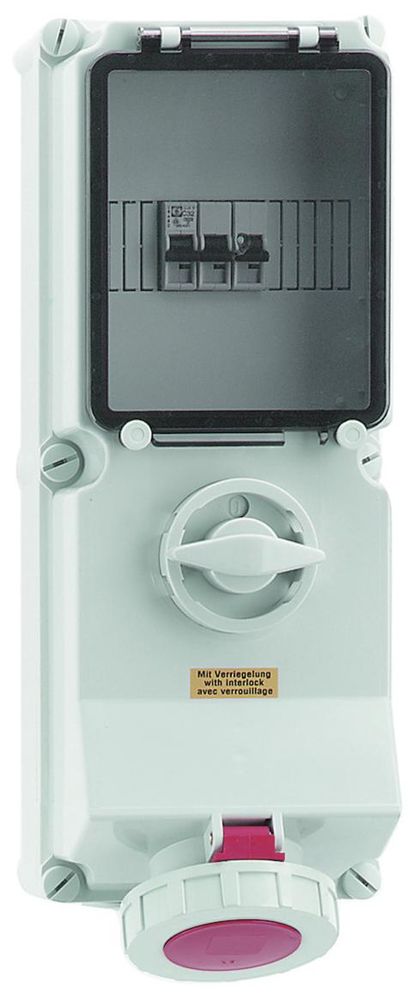

Bals 17550 wall socket TE switchable 63A 4p 400V 6h IP67 red automatic

Your rating:
Average rating
Rating for Bals 17550 wall socket TE switchable 63A 4p 400V 6h IP67 red automatic
( 0 / 5 ) 0 ratings
BALS 17550
This image may differ from the desired article.
2.042,27 EUR
( 2.430,30 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 17550 wall socket TE switchable 63A 4p 400V 6h IP67 red automatic
Lieske Part No.:2128950
Mfg Part No: 17550
UPC/EAN: 4024941175500
Weight:0.12 kg

Product information for BALS 17550:

Wall socket TE switchable, locked, fused
63A 4p (3P+PE) 400V (380 - 415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 460x180 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polycarbonate
Connection technology: screw terminals as box terminals with Kontex contact
Fuse: automatic
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device colour: operating flap smoke topaz, hinged lid red RAL 3000, bayonet ring grey RAL 7035, housing screws grey RAL 7035, housing bottom part grey RAL 7035, housing top part grey RAL 7035, switch knob grey RAL 7035
Device height: 503 mm, device width: 180 mm, device depth: 192 mm
Other technical features: The cable entry is open once at the top and twice at the bottom, Lockable in 0 position for up to 4 padlocks with a shackle diameter of up to 7 mm, With built-in circuit breaker C 3-pole
Type: 17550
