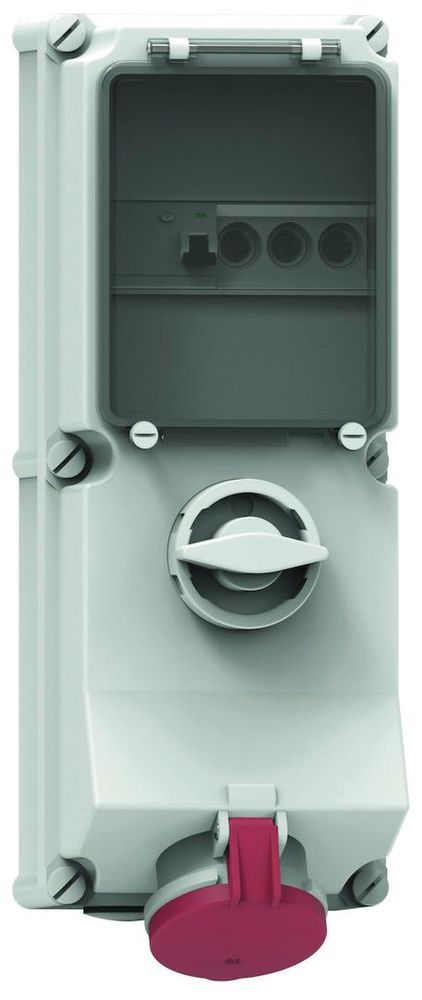

Bals 17537 Wall socket TE switchable 63A 5p 400V 6h IP44 red D0-safe. Fi63

Your rating:
Average rating
Rating for Bals 17537 Wall socket TE switchable 63A 5p 400V 6h IP44 red D0-safe. Fi63
( 0 / 5 ) 0 ratings
BALS 17537
This image may differ from the desired article.
2.130,28 EUR
( 2.535,03 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 17537 Wall socket TE switchable 63A 5p 400V 6h IP44 red D0-safe. Fi63
Lieske Part No.:460930
Mfg Part No: 17537
UPC/EAN: 4024941175371
Weight:0.12 kg

Product information for BALS 17537:

Wall socket TE switchable, locked, fused
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 460x180 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polycarbonate
Connection technology: screw terminals as box terminals with Kontex contact
Fuse: D0 fuse Residual current circuit
breaker: FI 63/0.03A 4p
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device colour: operating flap smoke topaz, hinged lid red RAL 3000, housing screws grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035, switch knob grey RAL 7035
Device height: 500 mm, device width: 180 mm, device depth: 191 mm
Other technical properties: The cable entry is open once at the top and twice at the bottom, Lockable in 0 position for up to 4 padlocks with a shackle diameter of up to 7mm, A fuse base D 02 3-pin is available under the operating flap, With built-in residual current circuit breaker 63/0.03A 4-pin
Type: 17537
