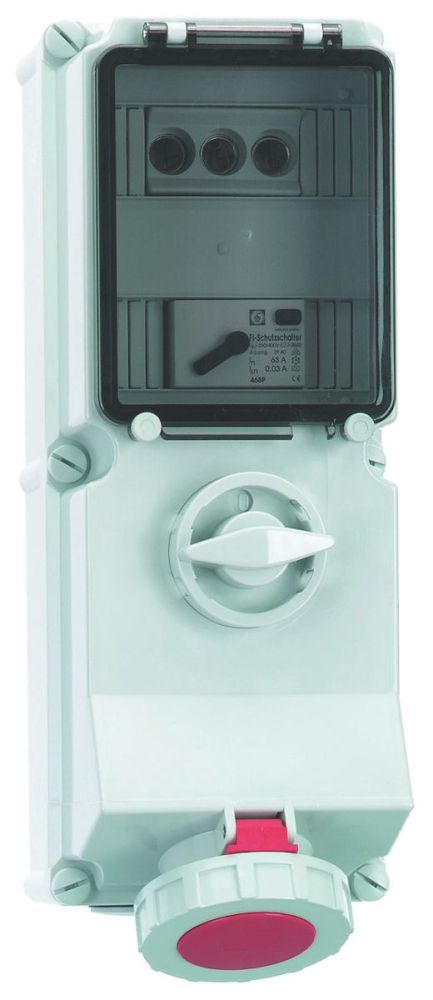

Bals 17314 wall socket TE switchable 63A 4p 400V 6h IP67 red D0 fuse Fi63
|
2.889,52 EUR |
|||||||||||
|
( 3.438,53 EUR incl. VAT ) ≈ £2,418.53 | ≈ $3,233.37 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 490437 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 17314 | ||||||||||
| UPC/EAN: | 4024941173148 | ||||||||||
| Weight: | 0.123 kg | ||||||||||
| Type: | 17314 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 17314:
63A 4p (3P+PE) 400V (380 - 415V~) 6h IP67
Frequenz: 50/60Hz
Technische Kennfarbe: rot RAL 3000
Gehäusegröße: 460x180 mm (HxB)
Kontaktträger/Kontakte: Der Kontaktträger ist aus hochwärmebeständigem Material, Die Kontakte sind Messing vernickelt
Maximaler Leiterquerschnitt: 25,0 qmm
Gehäusematerial: Polycarbonat
Anschlusstechnik: Schraubklemmen als Rahmenklemmen mit Kontex-Kontakt
Absicherung: D0-Sicherung
FI-Schutzschalter: FI 63/0,03A 4p
Kabeleinführung: 1xM40 oben, 1xM40/M32 unten
Gerätefarbe: Klappdeckel rot RAL 3000, Gehäuseunterteil grau RAL 7035, Gehäuseschrauben grau RAL 7035, Gehäuseoberteil grau RAL 7035, Schalterknebel grau RAL 7035, Bajonettring grau RAL 7035, Betätigungsklappe rauchtopas
Gerätehöhe: 503 mm, Gerätebreite: 180 mm, Gerätetiefe: 192 mm
Sonstige technische Eigenschaften: Die Leitungseinführung ist einmal oben und zweimal unten offen, In 0-Stellung abschließbar für bis zu 4 Bügelschlösser mit einem Bügeldurchmesser bis 7mm, Ein Sicherungssockel D 02 3pol ist unter der Betätigungsklappe vorhanden, Mit eingebautem Fi Schutzschalter 63/0,03A 4pol
| General | |
| IEC-amperage | 63 |
| Number of poles | 4 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| Degree of protection (IP) | IP67 |
| Switch | With on/off switch, without locking |
| Type of switch | Special switch |
| Material housing | Plastic |
| Model | Base unit and cover |
| Protection | D0-system |
| Contact material | CuZn |
| Surface finish contacts | Nickel-plated |
| With earth leakage switch | |
| Empty locations on mounting rail | |
| Military model | |
