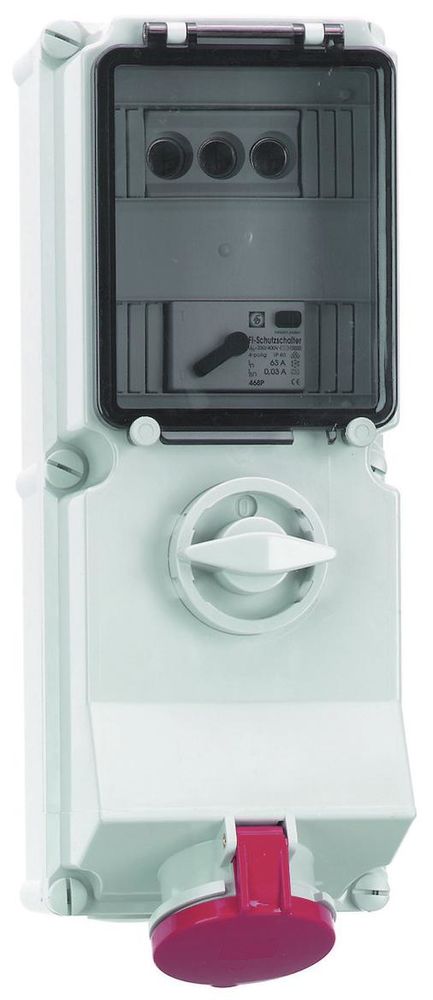

Bals 17306 wall socket can be switched off abs.63A 5p 400V 6h IP44 case size: 460x180

Your rating:
Average rating
Rating for Bals 17306 wall socket can be switched off abs.63A 5p 400V 6h IP44 case size: 460x180
( 4.2 / 5 ) 5 ratings
BALS 17306
This image may differ from the desired article.
2.932,48 EUR
( 3.489,65 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 17306 wall socket can be switched off abs.63A 5p 400V 6h IP44 case size: 460x180
Lieske Part No.:493662
Mfg Part No: 17306
UPC/EAN: 4024941173063
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
22.756,53 EUR
42.580,58 EUR
62.404,63 EUR
82.228,68 EUR

Product information for BALS 17306:

Wall socket with switchable fuse
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 460x180 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polycarbonate
Connection technology: screw terminals as box terminals with Kontex contact
Fuse: D0 fuse Residual current circuit
breaker: FI 63/0.03A 4p
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device colour: operating flap smoke topaz, hinged lid red RAL 3000, housing screws grey RAL 7035, housing base grey RAL 7035, Housing top grey RAL 7035, switch knob grey RAL 7035
Device height: 500 mm, device width: 180 mm, device depth: 191 mm
Other technical properties: The cable entry is open once at the top and twice at the bottom, Lockable in 0 position for up to 4 padlocks with a shackle diameter of up to 7mm, A fuse base D 02 3-pin is available under the operating flap, With built-in residual current circuit breaker 63/0.03A 4-pin


Questions & answers

What is the delivery time of Bals 17306 wall socket can be switched off abs.63A 5p 400V 6h IP44 case size: 460x180?

The article Bals 17306 wall socket can be switched off abs.63A 5p 400V 6h IP44 case size: 460x180 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 17306 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 17306 wall socket can be switched off abs.63A 5p 400V 6h IP44 case size: 460x180 always at the best possible price. We can give you a discount of 2% on Bals 17306 wall socket can be switched off abs.63A 5p 400V 6h IP44 case size: 460x180 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 2 pieces of Bals 17306 wall socket can be switched off abs.63A 5p 400V 6h IP44 case size: 460x180 we can offer you a price of 2.756,53 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Bals 17306 wall socket can be switched off abs.63A 5p 400V 6h IP44 case size: 460x180 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
