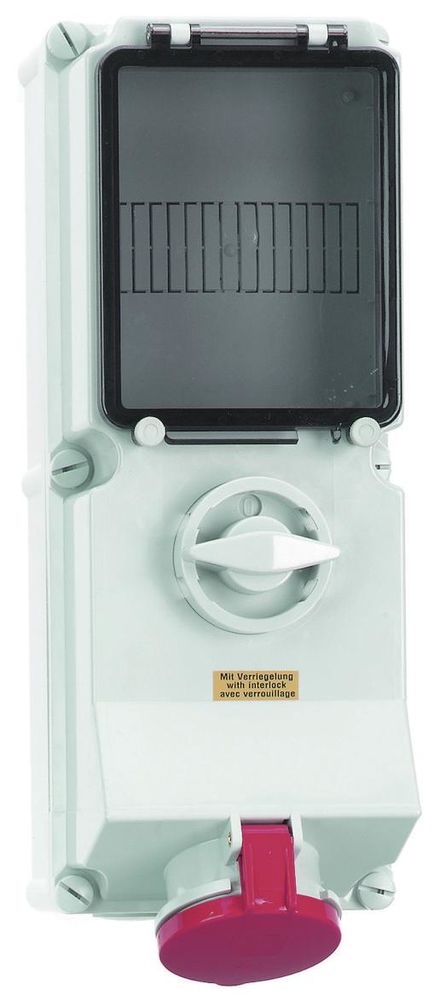

Bals 17163 Wall socket TE switchable 16A 5p 400V 6h IP44 red without fuse

Your rating:
Average rating
Rating for Bals 17163 Wall socket TE switchable 16A 5p 400V 6h IP44 red without fuse
( 0 / 5 ) 0 ratings
BALS 17163
This image may differ from the desired article.
900,01 EUR
( 1.071,01 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 17163 Wall socket TE switchable 16A 5p 400V 6h IP44 red without fuse
Lieske Part No.:460968
Mfg Part No: 17163
UPC/EAN: 4024941171632
Weight:0.12 kg

Product information for BALS 17163:

Wall socket TE switchable, locked, fused
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 365x134 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polycarbonate
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Fuse protection: without
Cable entry: 1xM32/M25 top, 1xM32/M25 bottom
Device colour: operating flap smoke topaz, hinged lid red RAL 3000, housing screws grey RAL 7035, housing bottom part grey RAL 7035, housing top part grey RAL 7035, switch knob grey RAL 7035
Device height: 384 mm, device width: 134 mm, device depth: 153 mm
Other technical properties: The cable entry is open twice at the top and twice at the bottom, Lockable in 0 position for up to 3 padlocks with a shackle diameter of up to 7mm, A mounting rail is present in the lower part of the housing, A mounting rail for 6 horizontal division units is present under the operating flap
Type: 17163
