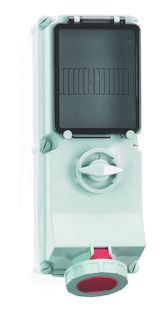

Bals 17066 wall socket, switchable, insulated, 63A 5p 400V 6h IP67, enclosure size: 460x180
|
1.753,03 EUR |
|||||||||||
|
( 2.086,11 EUR incl. VAT ) ≈ £1,467.29 | ≈ $1,961.64 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 821023 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 17066 | ||||||||||
| UPC/EAN: | 4024941170666 | ||||||||||
| Weight: | 3.28 kg | ||||||||||
| Type: | 17066 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 17066:
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 460x180 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polycarbonate
Connection technology: screw terminals as box terminals with Kontex contact
Fuse protection: without
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device colour: operating flap smoke topaz, hinged lid red RAL 3000, bayonet ring grey RAL 7035, housing screws grey RAL 7035, housing bottom part grey RAL 7035, housing top part grey RAL 7035, switch knob grey RAL 7035
Device height: 503 mm, device width: 180 mm, device depth: 192 mm
Other technical properties: The cable entry is open once at the top and twice at the bottom, Lockable in 0 position for up to 4 padlocks with a shackle diameter of up to 7mm, A mounting rail is provided in the lower part of the housing, A mounting rail for 8 horizontal division units is provided under the operating flap
| General | |
| IEC-amperage | 63 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| Degree of protection (IP) | IP67 |
| Switch | With on/off switch, without locking |
| Type of switch | Special switch |
| Material housing | Plastic |
| Model | Base unit and cover |
| Protection | None |
| Contact material | CuZn |
| Surface finish contacts | Nickel-plated |
| With earth leakage switch | |
| Military model | |
Questions & answers
What is the delivery time of Bals 17066 wall socket, switchable, insulated, 63A 5p 400V 6h IP67, enclosure size: 460x180?
The article Bals 17066 wall socket, switchable, insulated, 63A 5p 400V 6h IP67, enclosure size: 460x180 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 17066 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 17066 wall socket, switchable, insulated, 63A 5p 400V 6h IP67, enclosure size: 460x180 always at the best possible price. We can give you a discount of 2% on Bals 17066 wall socket, switchable, insulated, 63A 5p 400V 6h IP67, enclosure size: 460x180 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 2 pieces of Bals 17066 wall socket, switchable, insulated, 63A 5p 400V 6h IP67, enclosure size: 460x180 we can offer you a price of 1.700,44 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
