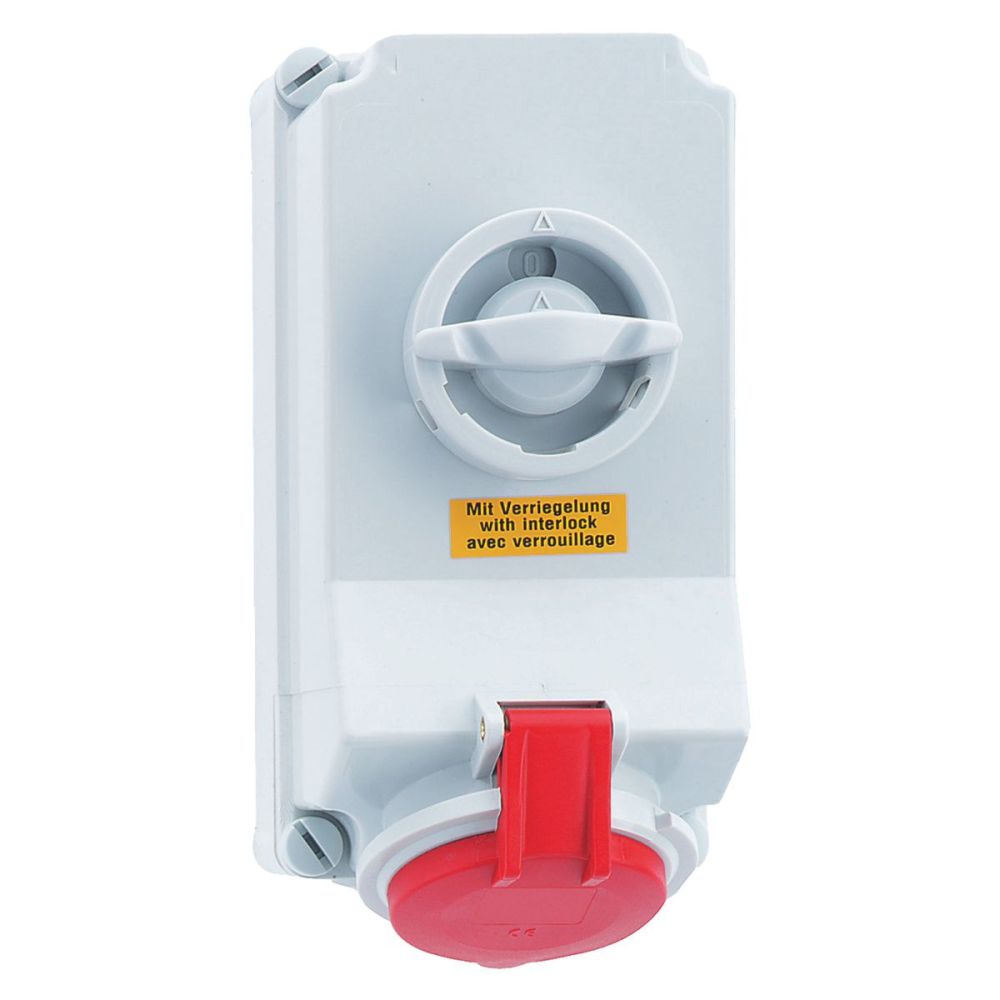

Bals 16039 wall socket, switchable, lockable, 16 A, 5p, 400 V, 6h, IP44, enclosure size: 225x118
|
602,58 EUR |
|||||||||||
|
( 717,07 EUR incl. VAT ) ≈ £504.36 | ≈ $674.29 plus delivery charges: 55,00 € |
|||||||||||
| Delivery time from supplier's stock (ca.) 5 workdaysinfo_outline | |||||||||||
| In Stock: 4 pieces | |||||||||||
| Lieske Part No.: | 805187 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 16039 | ||||||||||
| UPC/EAN: | 4024941160391 | ||||||||||
| Weight: | 0.985 kg | ||||||||||
| Type: | 16039 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 16039:
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 225x118 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polycarbonate
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Fuse protection: without
Cable entry: 2xM25 top, 2xM25 bottom
Device colour: hinged lid red RAL 3000, housing screws grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035, switch knob grey RAL 7035
Device height: 243 mm, device width: 118 mm, device depth: 137 mm
Other technical features: The cable entry is open once at the top, closed once at the top, closed twice at the bottom, lockable in 0 position for up to 3 padlocks with a shackle diameter of up to 7 mm
| General | |
| IEC-amperage | 16 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| Degree of protection (IP) | IP44 |
| Switch | Mechanical locking |
| Type of switch | Special switch |
| Model | Base unit and cover |
| Protection | None |
| With earth leakage switch | |
| Empty locations on mounting rail | |
| Military model | |
