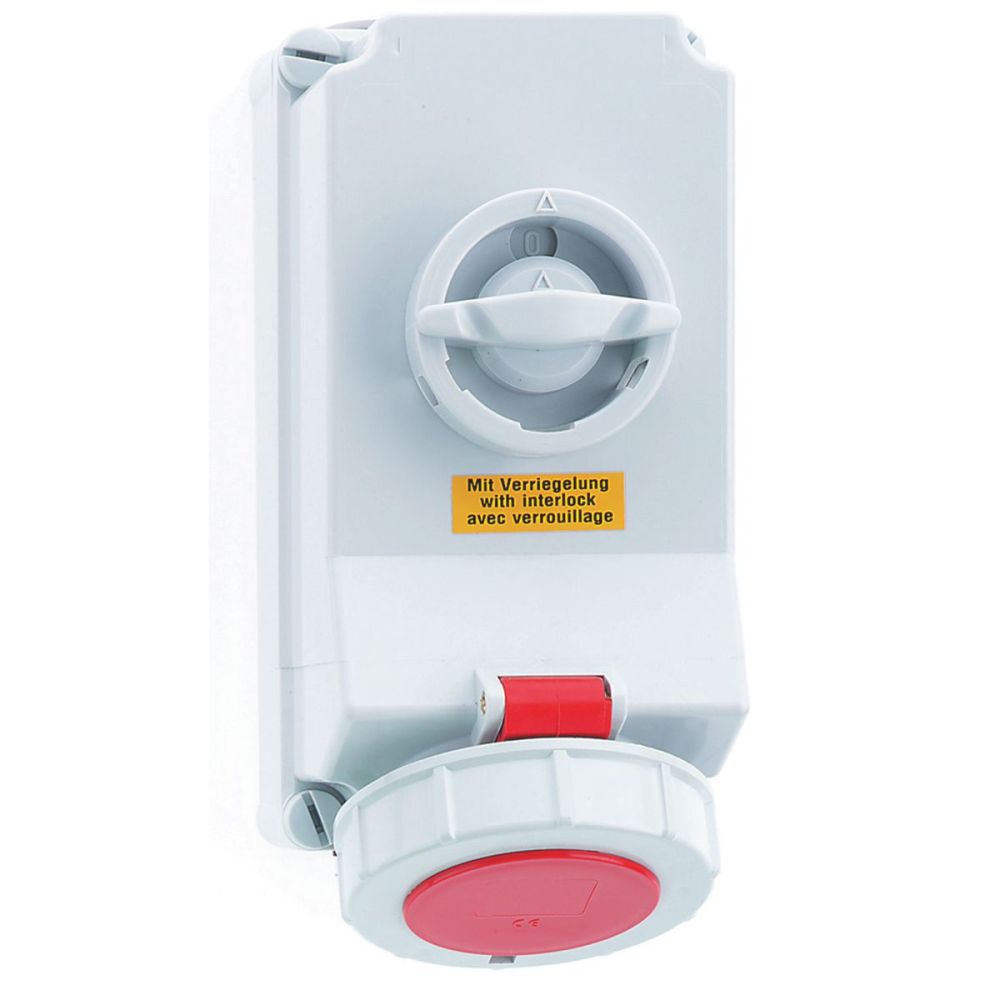

Bals 160178 wall socket, switchable, lockable, 32 A, 4p, 400 V, 6h, IP67, enclosure size 225x118
|
746,13 EUR |
|||||||||||
|
( 887,89 EUR incl. VAT ) ≈ £624.51 | ≈ $834.92 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 313155 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 160178 | ||||||||||
| UPC/EAN: | 4024941069656 | ||||||||||
| Weight: | 1.24 kg | ||||||||||
| Type: | 160178 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 160178:
32A 4p (3P+PE) 400V (380 - 415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 225x118 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polycarbonate
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Fuse protection: without
Cable entry: 2xM25 top, 2xM25 bottom
Device colour: hinged lid red RAL 3000, bayonet ring grey RAL 7035, housing screws grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035, switch knob grey RAL 7035
Device height: 260 mm, device width: 118 mm, device depth: 144 mm
Other technical features: The cable entry is open at the top, closed at the top and closed at the bottom twice. Lockable in the 0 position for up to 3 padlocks with a shackle diameter of up to 7 mm
| General | |
| IEC-amperage | 32 |
| Number of poles | 4 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| Switch | Mechanical locking |
| Type of switch | Special switch |
| Model | Base unit and cover |
| Protection | None |
| With earth leakage switch | |
| Empty locations on mounting rail | |
| Military model | |
Questions & answers
What is the delivery time of Bals 160178 wall socket, switchable, lockable, 32 A, 4p, 400 V, 6h, IP67, enclosure size 225x118?
The article Bals 160178 wall socket, switchable, lockable, 32 A, 4p, 400 V, 6h, IP67, enclosure size 225x118 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 160178 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 160178 wall socket, switchable, lockable, 32 A, 4p, 400 V, 6h, IP67, enclosure size 225x118 always at the best possible price. We can give you a discount of 2% on Bals 160178 wall socket, switchable, lockable, 32 A, 4p, 400 V, 6h, IP67, enclosure size 225x118 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Bals 160178 wall socket, switchable, lockable, 32 A, 4p, 400 V, 6h, IP67, enclosure size 225x118 we can offer you a price of 651,00 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
