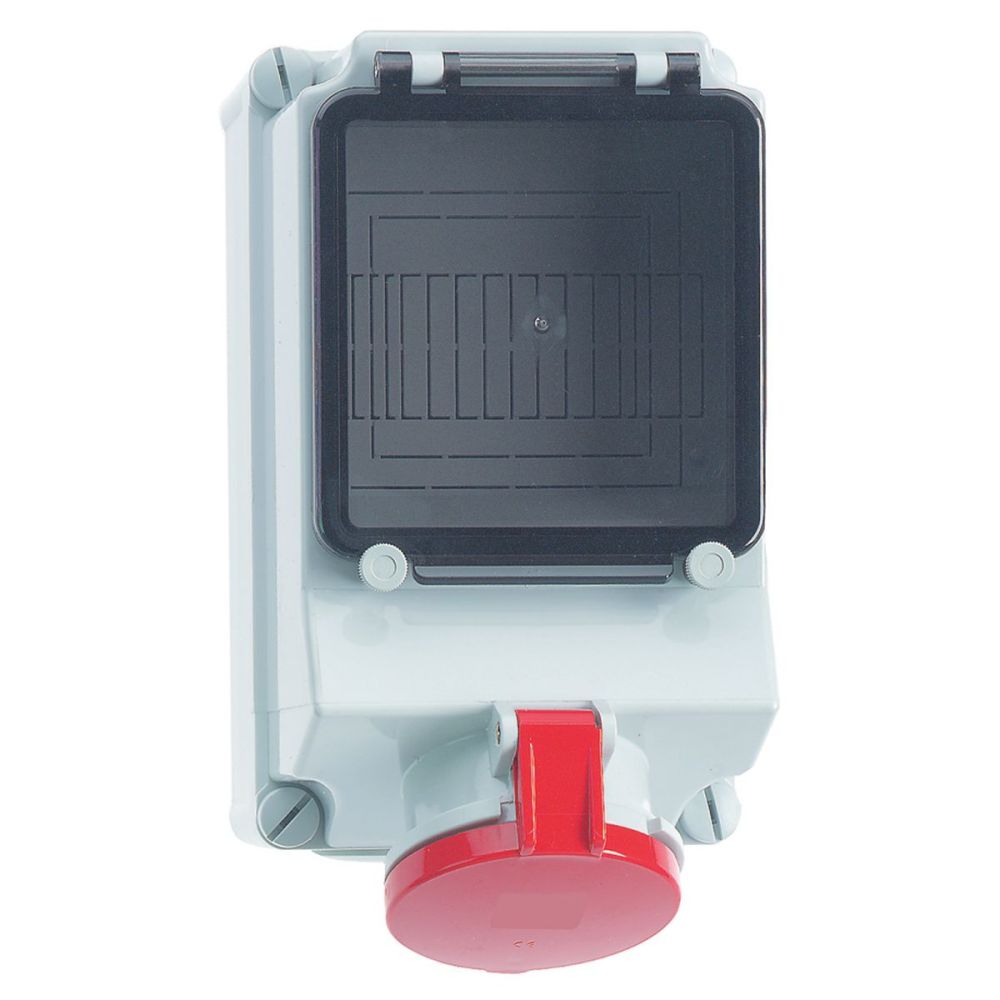

Bals 15130 wall socket GT protected 32A 5p 400V 6h IP44 enclosure size:260x160
|
709,46 EUR |
|||||||||||
|
( 844,26 EUR incl. VAT ) ≈ £593.82 | ≈ $793.89 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 194178 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 15130 | ||||||||||
| UPC/EAN: | 4024941151306 | ||||||||||
| Weight: | 1.555 kg | ||||||||||
| Type: | 15130 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 15130:
32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 260x160 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polycarbonate
Connection technology: with screw terminal
Fuse: without
Cable entry: 1xM40 top, 1xM40/M32 bottom
Device colour: operating flap smoke topaz, hinged lid red RAL 3000, housing screws grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 287 mm, device width: 160 mm, device depth: 165 mm
Other technical features: The cable entry is open once at the top and twice at the bottom, A mounting rail is provided in the lower part of the housing, A mounting rail for 7 horizontal division units is provided under the operating flap, The fuse cover is provided with pre-punched holes
| General | |
| IEC-amperage | 32 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| Degree of protection (IP) | IP44 |
| Switch | Without on/off switch |
| Type of switch | None |
| Model | Base unit and cover |
| Protection | None |
| With earth leakage switch | |
| Military model | |
Questions & answers
What is the delivery time of Bals 15130 wall socket GT protected 32A 5p 400V 6h IP44 enclosure size:260x160?
The article Bals 15130 wall socket GT protected 32A 5p 400V 6h IP44 enclosure size:260x160 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 15130 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 15130 wall socket GT protected 32A 5p 400V 6h IP44 enclosure size:260x160 always at the best possible price. We can give you a discount of 2% on Bals 15130 wall socket GT protected 32A 5p 400V 6h IP44 enclosure size:260x160 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 3 pieces of Bals 15130 wall socket GT protected 32A 5p 400V 6h IP44 enclosure size:260x160 we can offer you a price of 677,53 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
