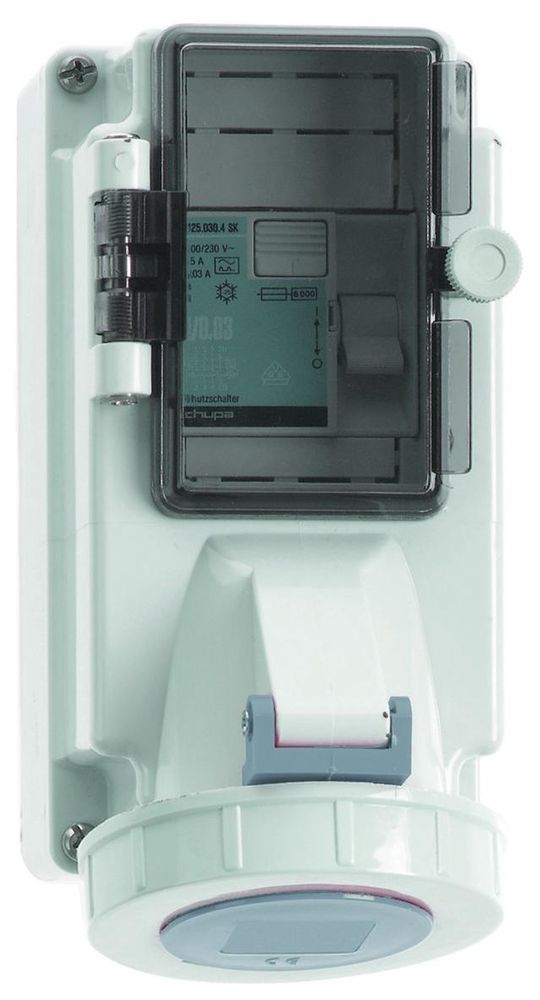

BALS 15106 wall outlet GT hedged 16A 3p 230V 6h IP67 Geh.Gr:170x90
|
773,98 EUR |
|||||||||||
|
( 921,04 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 958287 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 15106 | ||||||||||
| UPC/EAN: | 4024941151061 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BALS 15106:
16A 3p (2P+PE) 230V (200 - 250V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Housing size: 170x90 mm (HxW)
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polycarbonate
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Fuse protection: other residual
current circuit breaker: FI 25/0.03A 2p
Cable entry: 1xM20 top, 1xM25/20 bottom
Device colour: operating flap smoke topaz, hinged lid blue RAL 5015, bayonet ring grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 195 mm, Device width: 90 mm, Device depth: 109 mm
Other technical features: The cable entry is open once at the top and closed twice at the bottom, The housing base can be rotated by 180°, With built-in residual current circuit breaker 25/0.03A 2-pole
Type: 15106
