Bals 15103 wall socket QC TE 16A 4p 400V 6h IP44 red Fi40

Your rating:
Average rating
Rating for Bals 15103 wall socket QC TE 16A 4p 400V 6h IP44 red Fi40
( 0 / 5 ) 0 ratings
BALS 15103
This image may differ from the desired article.
756,86 EUR
( 900,66 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 15103 wall socket QC TE 16A 4p 400V 6h IP44 red Fi40
Lieske Part No.:460925
Mfg Part No: 15103
UPC/EAN: 4024941151030
Weight:0.12 kg

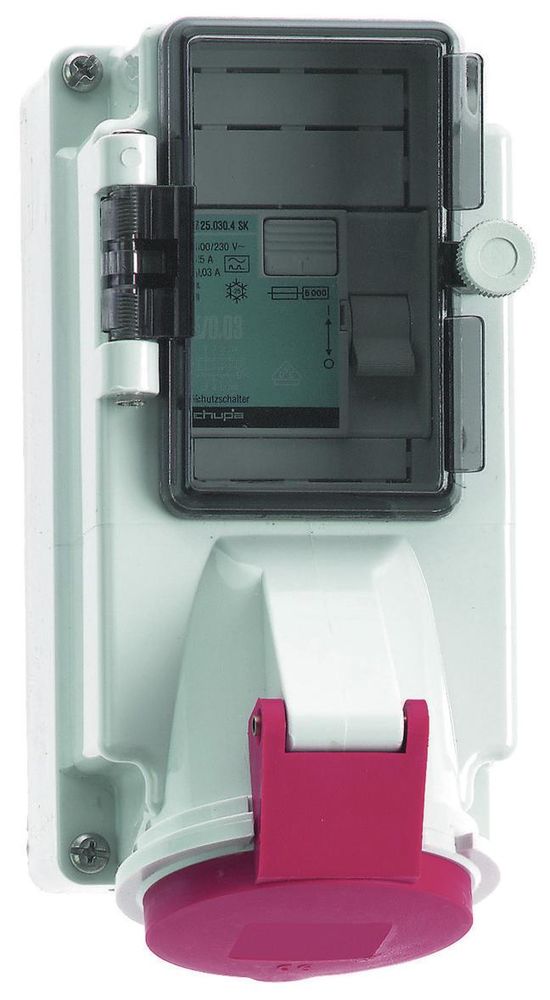

Product information for BALS 15103:

Wall socket QUICK-CONNECT TE, fused
16A 4p (3P+PE) 400V (380 - 415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 170x90 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polycarbonate
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Fuse protection: other residual current circuit
breaker: FI 40/0.03A 4p
Cable entry: 1xM20 top, 1xM25/20 bottom
Device colour: operating flap smoke topaz, hinged lid red RAL 3000, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 189 mm, device width: 90 mm, device depth: 114 mm
Other technical features: The cable entry is open once at the top and closed twice at the bottom, The housing base can be rotated by 180°, With built-in residual current circuit breaker 40/0.03A 4-pole
Type: 15103


Questions & answers

What is the delivery time of Bals 15103 wall socket QC TE 16A 4p 400V 6h IP44 red Fi40?

The article Bals 15103 wall socket QC TE 16A 4p 400V 6h IP44 red Fi40 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 15103 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 15103 wall socket QC TE 16A 4p 400V 6h IP44 red Fi40 always at the best possible price. We can give you a discount of 2% on Bals 15103 wall socket QC TE 16A 4p 400V 6h IP44 red Fi40 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
