Bals 15101 wall socket GT fused 16A 3p 230V 6h IP44 housing size: 170x90

Your rating:
Average rating
Rating for Bals 15101 wall socket GT fused 16A 3p 230V 6h IP44 housing size: 170x90
( 4.5 / 5 ) 6 ratings
BALS 15101

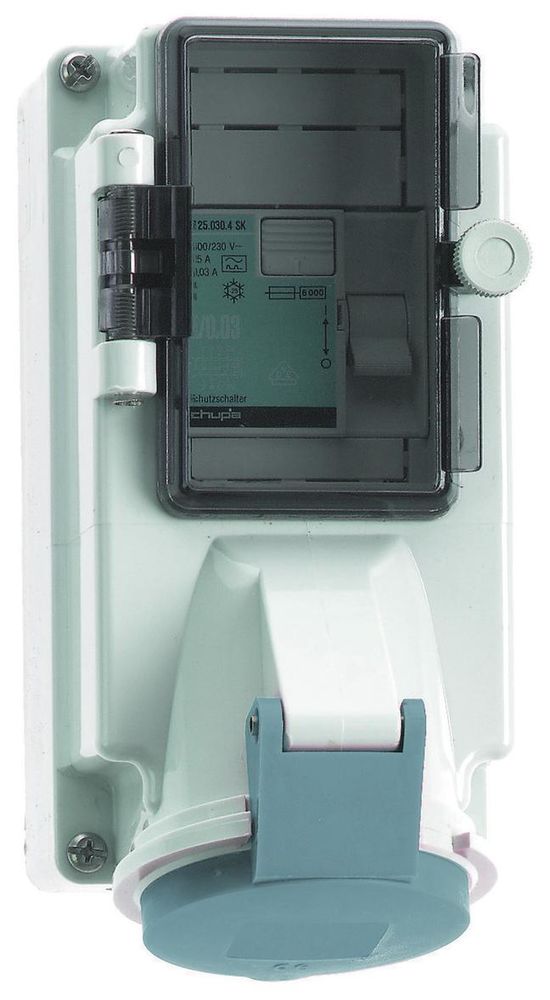

This image may differ from the desired article.
756,86 EUR
( 900,66 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 15101 wall socket GT fused 16A 3p 230V 6h IP44 housing size: 170x90
Lieske Part No.:1315730
Mfg Part No: 15101
UPC/EAN: 4024941151016
Weight:0.12 kg

Product information for BALS 15101:

Wall socket QUICK-CONNECT TE, fused
16A 3p (2P+PE) 230V (200 - 250V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Housing size: 170x90 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polycarbonate
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Fuse protection: other
FI circuit breaker: FI 25/0.03A 2p
Cable entry: 1xM20 top, 1xM25/20 bottom
Device colour: operating flap smoke topaz, hinged lid blue RAL 5015, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 188 mm, device width: 90 mm, device depth: 108 mm
Other technical features: The cable entry is open once at the top and closed twice at the bottom, The housing base can be rotated by 180°, With built-in residual current circuit breaker 25/0.03A 2-pole
Type: 15101


Questions & answers

What is the delivery time of Bals 15101 wall socket GT fused 16A 3p 230V 6h IP44 housing size: 170x90?

The article Bals 15101 wall socket GT fused 16A 3p 230V 6h IP44 housing size: 170x90 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 15101 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 15101 wall socket GT fused 16A 3p 230V 6h IP44 housing size: 170x90 always at the best possible price. We can give you a discount of 2% on Bals 15101 wall socket GT fused 16A 3p 230V 6h IP44 housing size: 170x90 if you choose payment in advance on ordering.

You can also send us a price proposal for your desired quantity of Bals 15101 wall socket GT fused 16A 3p 230V 6h IP44 housing size: 170x90 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
