Bals 15075 wall socket TE fused 125A 5p 400V 6h IP67 red Fi125/0.5A 4p

Your rating:
Average rating
Rating for Bals 15075 wall socket TE fused 125A 5p 400V 6h IP67 red Fi125/0.5A 4p
( 0 / 5 ) 0 ratings
BALS 15075

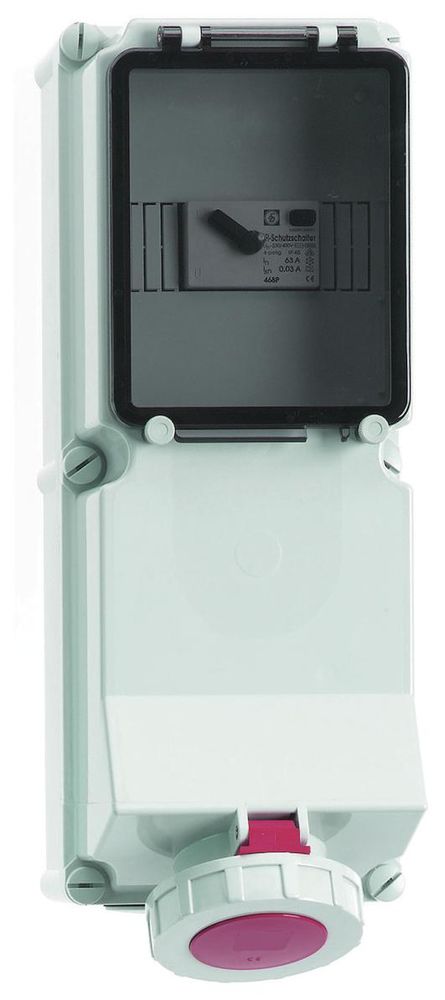

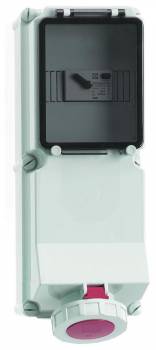

This image may differ from the desired article.
5.438,47 EUR
( 6.471,78 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 15075 wall socket TE fused 125A 5p 400V 6h IP67 red Fi125/0.5A 4p
Lieske Part No.:460850
Mfg Part No: 15075
UPC/EAN: 4024941150750
Weight:0.12 kg

Product information for BALS 15075:

Wall socket TE fused
125A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 460x180 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 70.0 mm² (possibly limited by the cable entry used)
Housing material: polycarbonate
Connection technology: screw terminals as box terminals with Kontex contact
Fuse: other
FI circuit breaker: FI 125/0.5A 4p
Cable entry: 1xM40 top, 1xM50/M40 bottom
Device colour: operating flap smoke topaz, hinged lid red RAL 3000, bayonet ring grey RAL 7035, Housing screws grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 512 mm, device width: 180 mm, device depth: 210 mm
Other technical properties: The cable entry is open once at the top and twice at the bottom, with built-in residual current circuit breaker 125/0.5A 4-pole
Type: 15075
