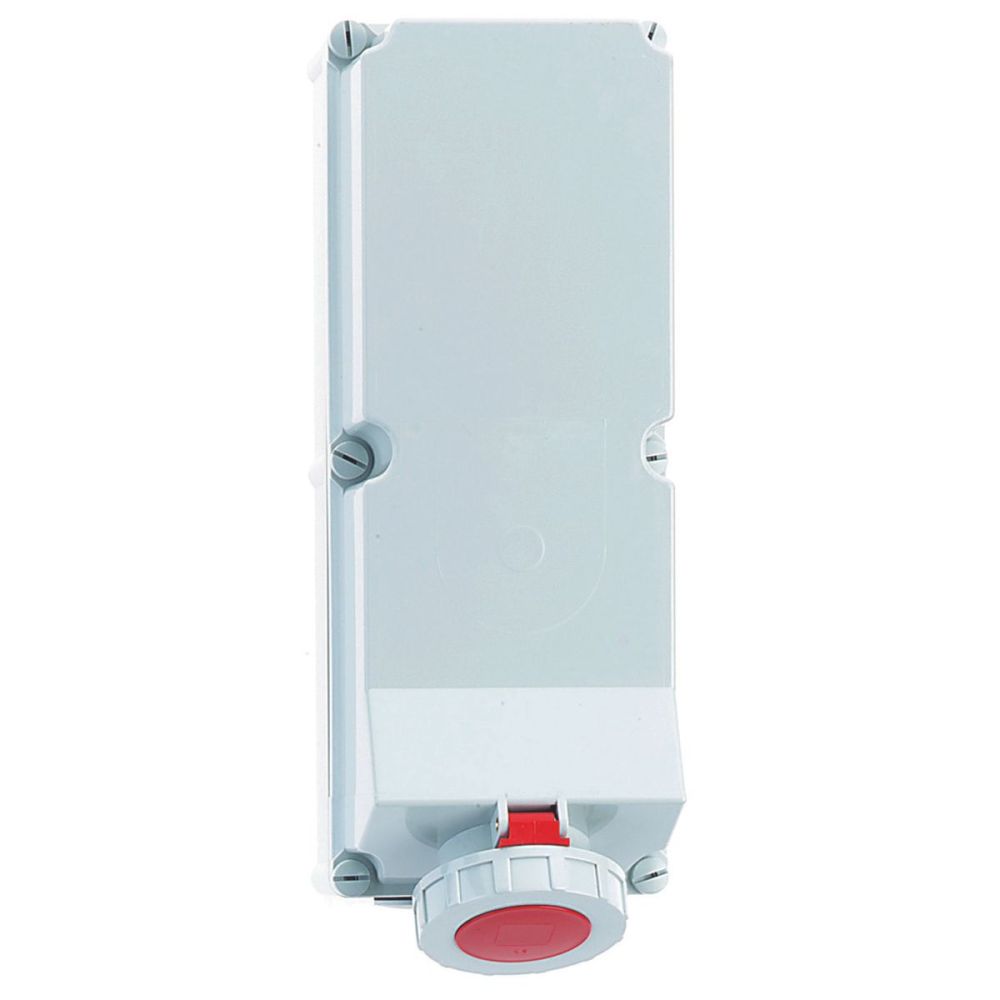

Bals 15009 wall socket GT protected 125 A 5p 400 V 6h IP67 enclosure size:460x180
|
1.534,25 EUR |
|||||||||||
|
( 1.825,76 EUR incl. VAT ) ≈ £1,284.17 | ≈ $1,716.83 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 306203 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 15009 | ||||||||||
| UPC/EAN: | 4024941150095 | ||||||||||
| Weight: | 4.128 kg | ||||||||||
| Type: | 15009 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 15009:
125A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Housing size: 460x180 mm (HxW)
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 70.0 mm² (possibly limited by the cable entry used)
Housing material: polycarbonate
Connection technology: screw terminals as box terminals with Kontex contact
Fuse: NH
Cable entry: 1xM40 top, 1xM40/M50 bottom
Device colour: hinged lid red RAL 3000, bayonet ring grey RAL 7035, housing screws grey RAL 7035, housing base grey RAL 7035, housing top grey RAL 7035
Device height: 512 mm, Device width: 180 mm, Device depth: 210 mm
Other technical features: The cable entry is open once at the top and twice at the bottom, With built-in Si load-break switch NH00
| General | |
| IEC-amperage | 125 |
| Number of poles | 5 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Clock hour position | 6 |
| Identification colour | Red |
| Degree of protection (IP) | IP67 |
| Switch | Without on/off switch |
| Type of switch | None |
| Material housing | Plastic |
| Model | Base unit and cover |
| Protection | NH |
| Contact material | CuZn |
| Surface finish contacts | Nickel-plated |
| With earth leakage switch | |
| Empty locations on mounting rail | |
| Military model | |
