Bals 13849 63 5 690 5H Gt-A-Do IP44 Gl 107X100

Your rating:
Average rating
Rating for Bals 13849 63 5 690 5H Gt-A-Do IP44 Gl 107X100
( 0 / 5 ) 0 ratings
BALS 13849
This image may differ from the desired article.
309,77 EUR
( 368,63 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 13849 63 5 690 5H Gt-A-Do IP44 Gl 107X100
Lieske Part No.:466924
Mfg Part No: 13849
UPC/EAN: 4024941138499
Weight:0.12 kg

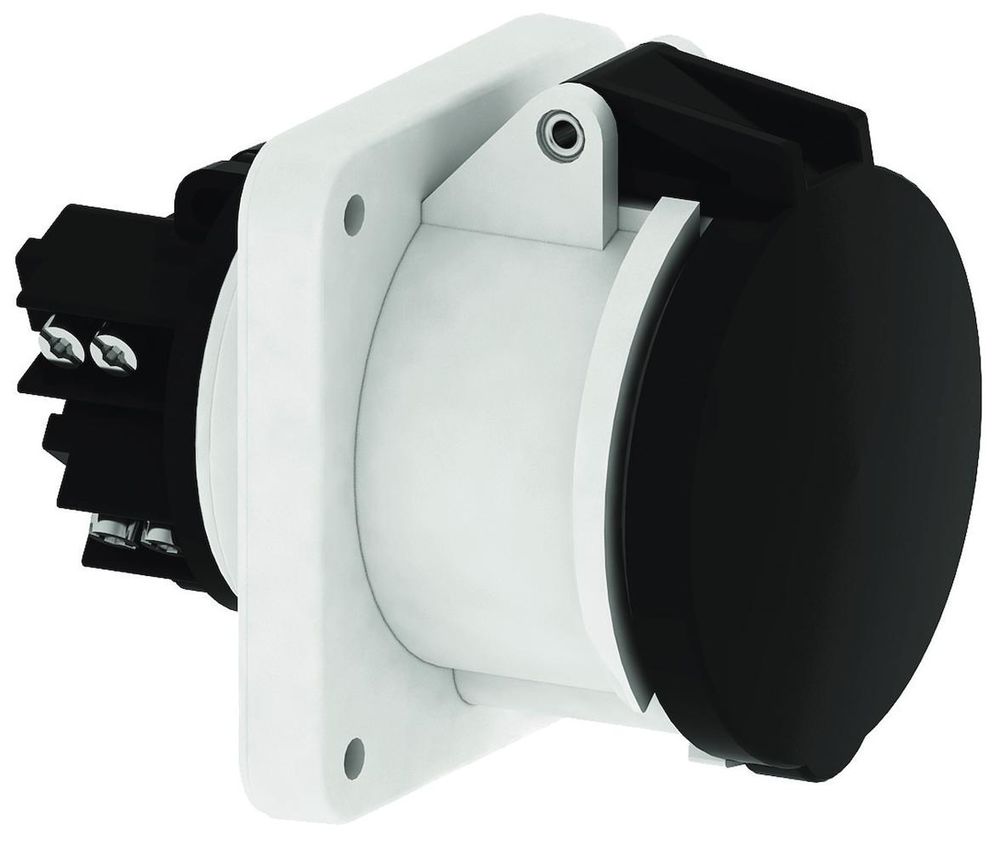

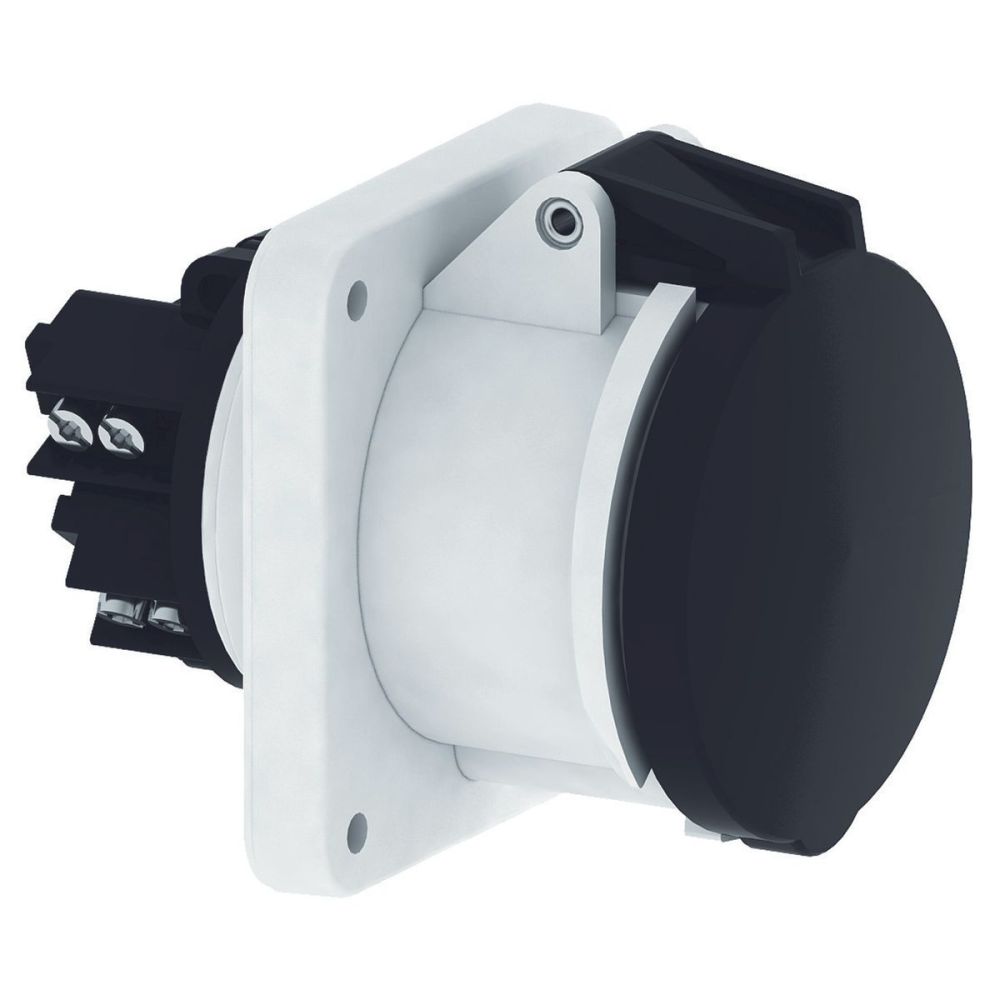

Product information for BALS 13849:

Panel-mounted socket TE straight
63A 5p (3P+N+PE) 690V (347/600 - 400/690V~) 5h IP44
Frequency: 50/60Hz
Technical identification colour: black RAL 9005
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: other
Device colour: hinged lid black RAL 9005, housing grey RAL 7035
Device height: 114 mm, device width: 100 mm, device depth: 134 mm
Flange dimension vertical: 107 mm, flange dimension horizontal: 100 mm
Hole spacing vertical: 85 mm, hole spacing horizontal: 77 mm
Type: 13849


Questions & answers

What is the delivery time of Bals 13849 63 5 690 5H Gt-A-Do IP44 Gl 107X100?

The article Bals 13849 63 5 690 5H Gt-A-Do IP44 Gl 107X100 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 13849 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 13849 63 5 690 5H Gt-A-Do IP44 Gl 107X100 always at the best possible price. We can give you a discount of 2% on Bals 13849 63 5 690 5H Gt-A-Do IP44 Gl 107X100 if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
