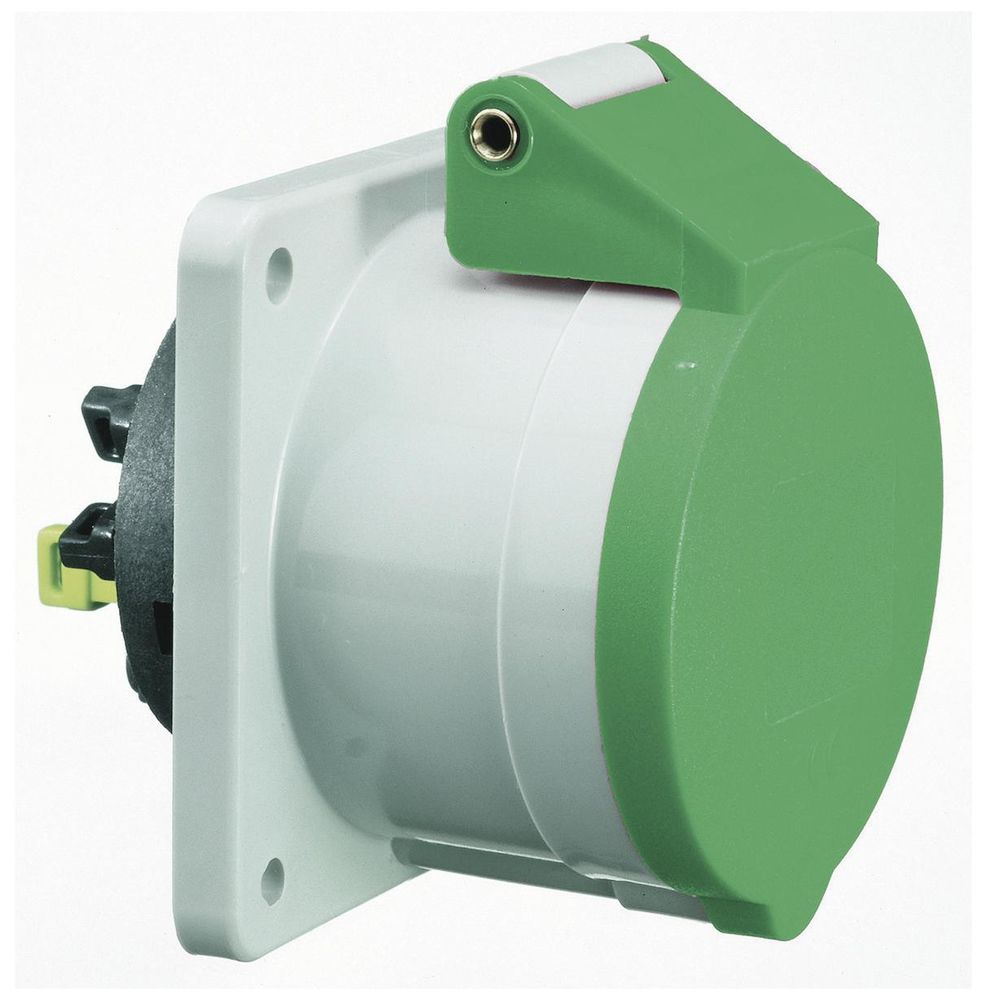

Bals 13718 panel socket QC straight 32A 5p >50V >300-500Hz 2h IP44 green

Your rating:
Average rating
Rating for Bals 13718 panel socket QC straight 32A 5p >50V >300-500Hz 2h IP44 green
( 0 / 5 ) 0 ratings
BALS 13718
This image may differ from the desired article.
142,76 EUR
( 169,88 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 13718 panel socket QC straight 32A 5p >50V >300-500Hz 2h IP44 green
Lieske Part No.:460946
Mfg Part No: 13718
UPC/EAN: 4024941137188
Weight:0.12 kg

Product information for BALS 13718:

QUICK-CONNECT panel socket straight
32A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP44
Frequency: over 300 up to and including 500Hz
Technical identification colour: green RAL 6002
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device colour: hinged lid green RAL 6002, housing grey RAL 7035
Device height: 98 mm, device width: 75 mm, device depth: 109 mm
Flange dimension vertical: 75 mm, flange dimension horizontal: 75 mm
Hole spacing vertical: 60 mm, hole spacing horizontal: 60 mm
Type: 13718


Questions & answers

What is the delivery time of Bals 13718 panel socket QC straight 32A 5p >50V >300-500Hz 2h IP44 green?

The article Bals 13718 panel socket QC straight 32A 5p >50V >300-500Hz 2h IP44 green is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 13718 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals 13718 panel socket QC straight 32A 5p >50V >300-500Hz 2h IP44 green always at the best possible price. We can give you a discount of 2% on Bals 13718 panel socket QC straight 32A 5p >50V >300-500Hz 2h IP44 green if you choose payment in advance on ordering.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
