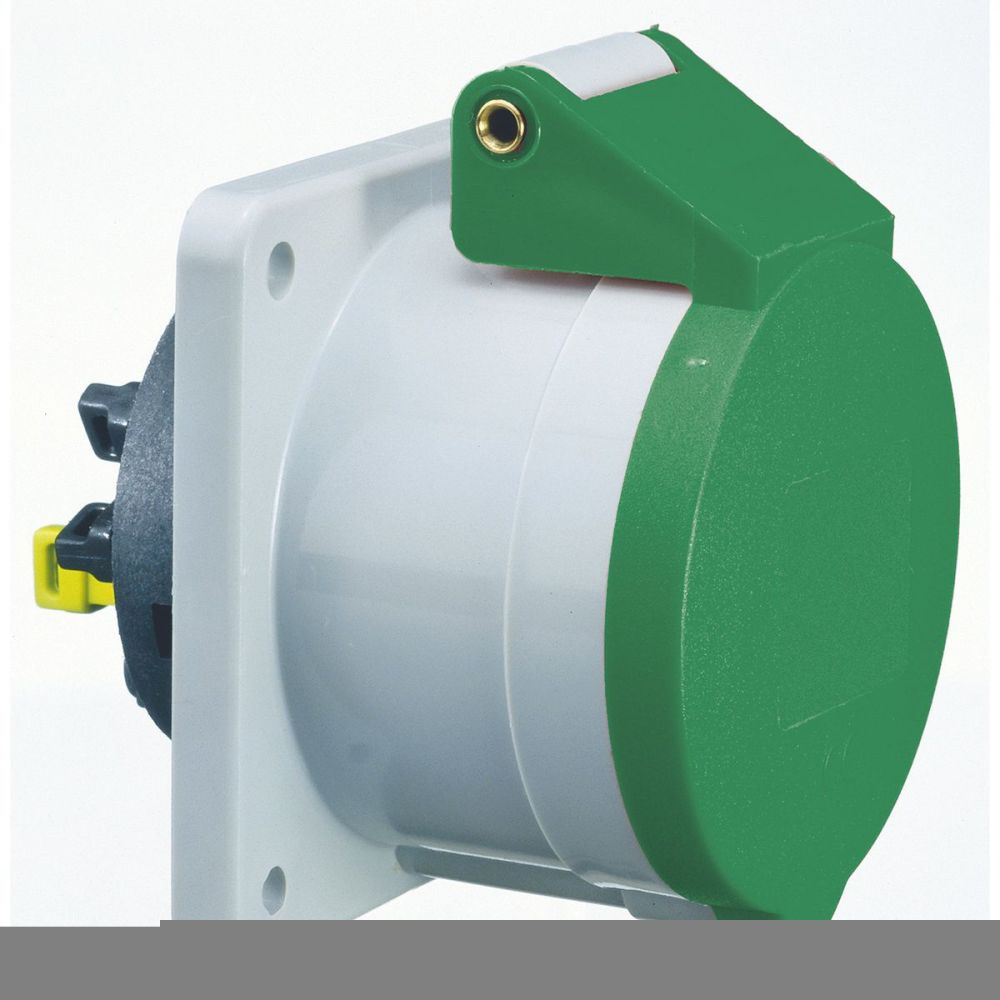

Bals 13718 mounting socket QC straight 32 A 5p >50 V >300–500 Hz 2 h IP44 green
|
144,97 EUR |
|||||||||||
|
( 172,51 EUR incl. VAT ) ≈ £121.34 | ≈ $162.22 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 460946 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 13718 | ||||||||||
| UPC/EAN: | 4024941137188 | ||||||||||
| Weight: | 0.225 kg | ||||||||||
| Type: | 13718 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 13718:
32A 5p (3P+N+PE) >50V green >300-500Hz (> 50V~) 2h IP44
Frequency: over 300 up to and including 500Hz
Technical identification colour: green RAL 6002
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device colour: hinged lid green RAL 6002, housing grey RAL 7035
Device height: 98 mm, device width: 75 mm, device depth: 109 mm
Flange dimension vertical: 75 mm, flange dimension horizontal: 75 mm
Hole spacing vertical: 60 mm, hole spacing horizontal: 60 mm
| General | |
| IEC-amperage | 32 |
| Voltage acc. EN 60309-2 | 50-500 V (>300-500 Hz) green |
| Number of poles | 5 |
| Clock hour position | 2 |
| Identification colour | Green |
| RAL-number | 6002 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Angle of plug | Straight |
| Material | Plastic |
| Flange size vertical | 75 |
| Drill hole distance vertical | 60 |
| Flange size horizontal | 75 |
| Drill hole distance horizontal | 60 |
| Military model | |
Questions & answers
What is the delivery time of Bals 13718 mounting socket QC straight 32 A 5p >50 V >300–500 Hz 2 h IP44 green?
The article Bals 13718 mounting socket QC straight 32 A 5p >50 V >300–500 Hz 2 h IP44 green is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 13718 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 13718 mounting socket QC straight 32 A 5p >50 V >300–500 Hz 2 h IP44 green always at the best possible price. We can give you a discount of 2% on Bals 13718 mounting socket QC straight 32 A 5p >50 V >300–500 Hz 2 h IP44 green if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 5 pieces of Bals 13718 mounting socket QC straight 32 A 5p >50 V >300–500 Hz 2 h IP44 green we can offer you a price of 137,36 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
