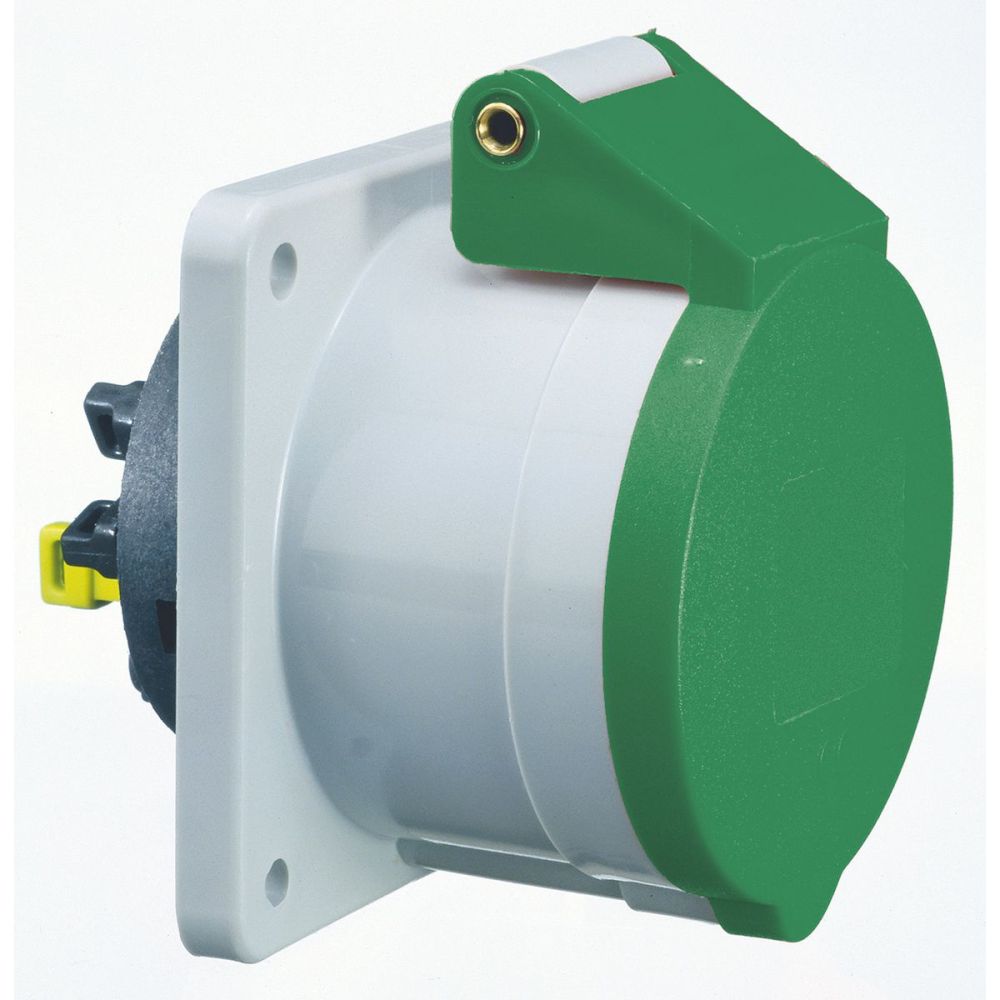

Bals 13695 mounting socket QUICK-CONNECT straight 16 A 4p >50 V 10 h IP44
|
108,20 EUR |
|||||||||||
|
( 128,76 EUR incl. VAT ) ≈ £90.56 | ≈ $121.08 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 707389 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 13695 | ||||||||||
| UPC/EAN: | 4024941136952 | ||||||||||
| Weight: | 0.119 kg | ||||||||||
| Type: | 13695 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 13695:
16A 4p (3P+PE) >50V green 100-300Hz (> 50V~) 10h IP44
Frequency: 100 up to and including 300Hz
Technical identification colour: green RAL 6002
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device colour: hinged lid green RAL 6002, housing grey RAL 7035
Device height: 82 mm, device width: 75 mm, device depth: 88 mm
Flange dimension vertical: 75 mm, flange dimension horizontal: 75 mm
Hole spacing vertical: 60 mm, hole spacing horizontal: 60 mm
| General | |
| IEC-amperage | 16 |
| Voltage acc. EN 60309-2 | 50-500 V (100-300 Hz) green |
| Number of poles | 4 |
| Clock hour position | 10 |
| Identification colour | Green |
| RAL-number | 6002 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Angle of plug | Straight |
| Material | Plastic |
| Flange size vertical | 75 |
| Drill hole distance vertical | 60 |
| Flange size horizontal | 75 |
| Drill hole distance horizontal | 60 |
| Military model | |
