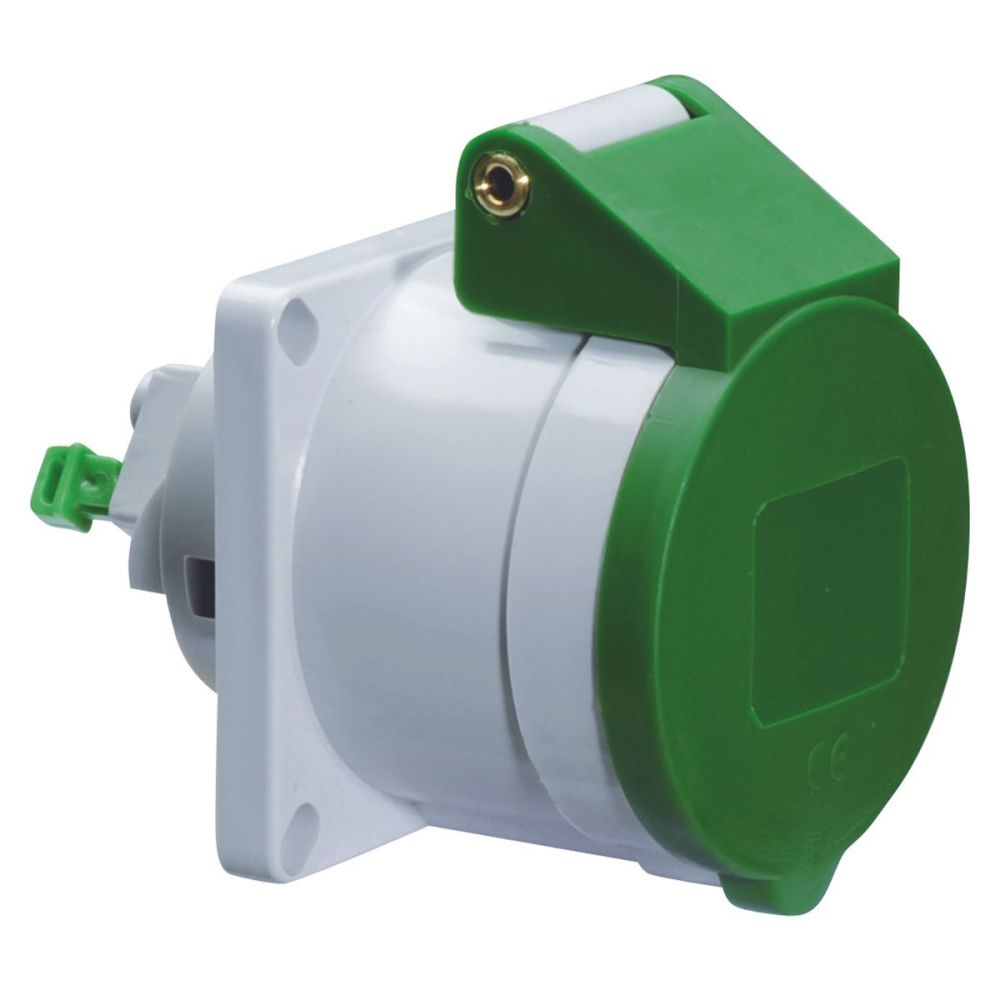

Bals 13683 mounting socket QUICK-CONNECT straight 16 A 5p >50 V 10 h IP44
|
5.412,72 EUR |
|||||||||||
|
( 6.441,14 EUR incl. VAT ) ≈ £4,530.45 | ≈ $6,056.83 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Sales unit: 48 pieces | |||||||||||
| Lieske Part No.: | 270318 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 13683 | ||||||||||
| UPC/EAN: | 4024941136839 | ||||||||||
| Weight: | 0.13 kg | ||||||||||
| Type: | 13683 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 13683:
16A 5p (3P+N+PE) >50V green 100-300Hz (> 50V~) 10h IP44
Frequency: 100 up to and including 300Hz
Technical identification colour: green RAL 6002
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device colour: hinged lid green RAL 6002, housing grey RAL 7035
Device height: 85 mm, device width: 65 mm, device depth: 90 mm
Flange dimension vertical: 72 mm, flange dimension horizontal: 65 mm
Hole spacing vertical: 52 mm, hole spacing horizontal: 52 mm
The item price shown refers to 48 pieces Bals 13683
| General | |
| IEC-amperage | 16 |
| Voltage acc. EN 60309-2 | 50-500 V (100-300 Hz) green |
| Number of poles | 5 |
| Clock hour position | 10 |
| Identification colour | Green |
| RAL-number | 6002 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Angle of plug | Straight |
| Material | Plastic |
| Flange size vertical | 72 |
| Drill hole distance vertical | 52 |
| Flange size horizontal | 65 |
| Drill hole distance horizontal | 52 |
| Military model | |
