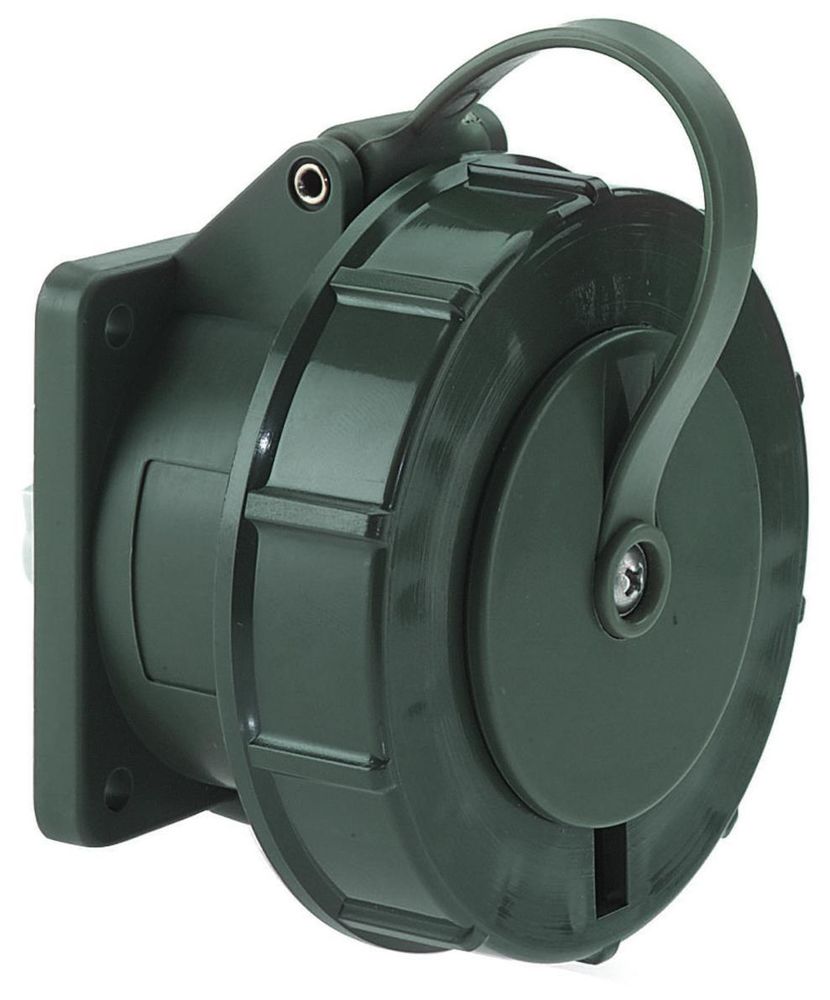

Bals CEE straight mounted receptacle 13067, 63A 5 pin 6h IP67 400V
|
517,67 EUR |
|||||||||||
|
( 616,03 EUR incl. VAT ) plus delivery charges |
|||||||||||
| Delivery time on requestinfo_outline | |||||||||||
| Lieske Part No.: | 760962 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 13067 | ||||||||||
| UPC/EAN: | 4024941130677 | ||||||||||
| Weight: | 0.12 kg | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for BALS 13067:
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: bronze green RAL 6031-F9
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polyamide
Connection technology: screw terminals as box terminals with Kontex contact
Cable entry: other
Device colour: bayonet ring bronze green RAL 6031-F9, hinged cover bronze green RAL 6031-F9, housing bronze green RAL 6031-F9
Device height: 114 mm, device width: 111 mm, device depth: 139 mm
Flange dimension vertical: 107 mm, flange dimension horizontal: 100 mm
Drill hole spacing vertical: 85 mm, horizontal hole spacing: 77 mm
Other technical features: A pilot contact is present, the bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 AS 009, supply no.: 5935-12-300-3603
