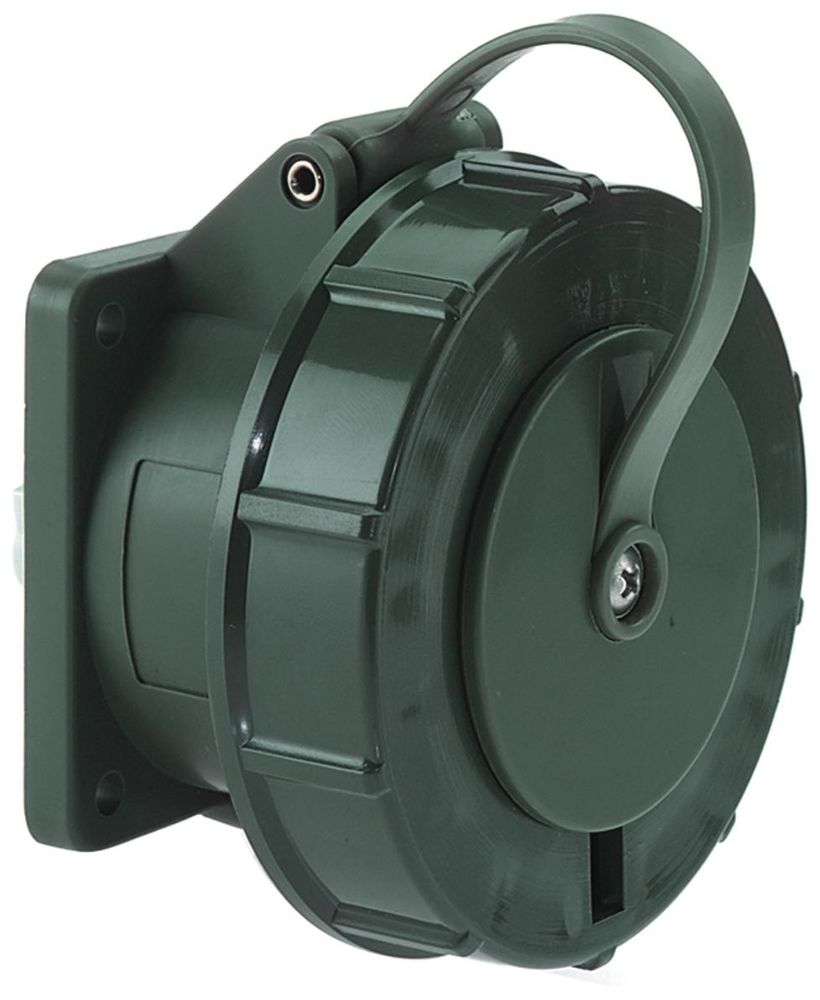

Bals CEE straight mounted receptacle 13066, 32A 5 pin 6h IP67 400V

Your rating:
Average rating
Rating for Bals CEE straight mounted receptacle 13066, 32A 5 pin 6h IP67 400V
( 4 / 5 ) 7 ratings
BALS 13066
This image may differ from the desired article.
203,94 EUR
( 242,69 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals CEE straight mounted receptacle 13066, 32A 5 pin 6h IP67 400V
Lieske Part No.:766431
Mfg Part No: 13066
UPC/EAN: 4024941130660
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
5191,70 EUR
10179,47 EUR
15167,23 EUR
20154,99 EUR

Product information for BALS 13066:

QUICK-CONNECT TN panel socket straight
32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: bronze green RAL 6031-F9
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device colour: bayonet ring bronze green RAL 6031-F9, hinged cover bronze green RAL 6031-F9, housing bronze green RAL 6031-F9
Device height: 106 mm, device width: 101.5 mm, device depth: 113 mm
Vertical flange dimension: 75 mm, horizontal flange dimension: 75 mm
Hole spacing vertical: 60 mm, Hole spacing horizontal: 60 mm
Other technical features: The bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 AS 005, supply no.: 5935-12-300-5323


Questions & answers

What is the delivery time of Bals CEE straight mounted receptacle 13066, 32A 5 pin 6h IP67 400V?

The article Bals CEE straight mounted receptacle 13066, 32A 5 pin 6h IP67 400V is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 13066 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals CEE straight mounted receptacle 13066, 32A 5 pin 6h IP67 400V always at the best possible price. We can give you a discount of 2% on Bals CEE straight mounted receptacle 13066, 32A 5 pin 6h IP67 400V if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of Bals CEE straight mounted receptacle 13066, 32A 5 pin 6h IP67 400V we can offer you a price of 191,70 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Bals CEE straight mounted receptacle 13066, 32A 5 pin 6h IP67 400V via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
