BALS 13032 mounted receptacle TN QC just 3p 32A 230V 6h IP67

Your rating:
Average rating
Rating for BALS 13032 mounted receptacle TN QC just 3p 32A 230V 6h IP67
( 4.6 / 5 ) 5 ratings
BALS 13032

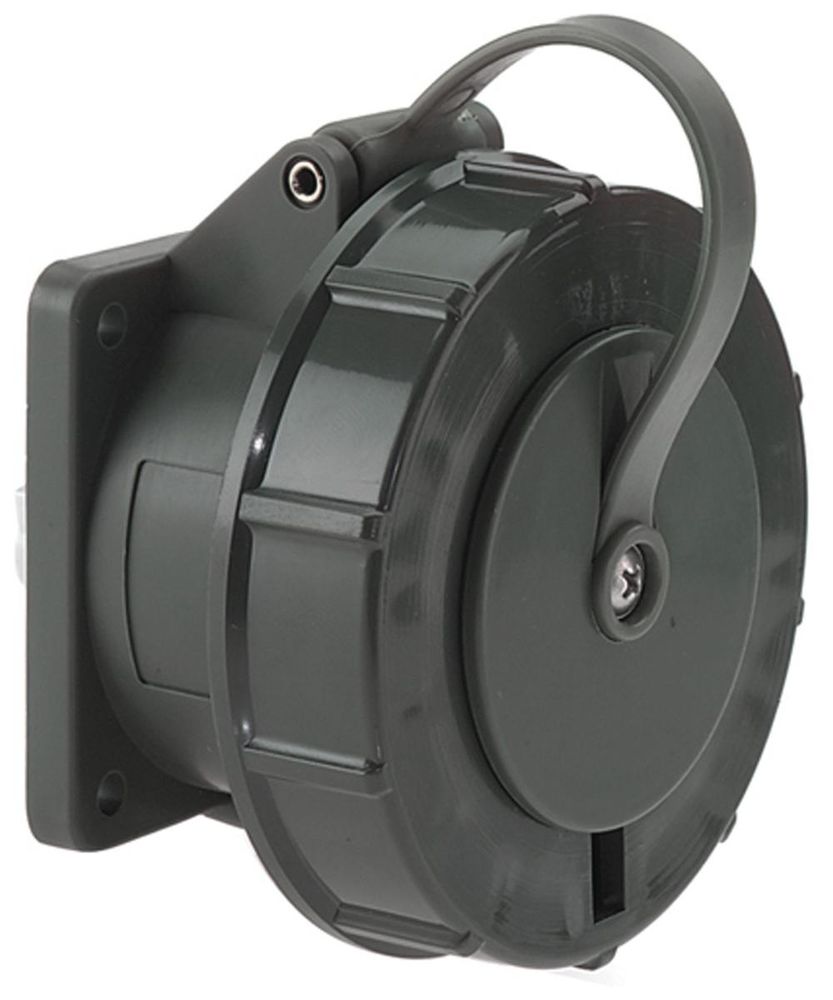

This image may differ from the desired article.
172,95 EUR
( 205,81 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x BALS 13032 mounted receptacle TN QC just 3p 32A 230V 6h IP67
Lieske Part No.:956727
Mfg Part No: 13032
UPC/EAN: 4024941130325
Weight:0.12 kg

Product information for BALS 13032:

QUICK-CONNECT TN panel socket straight
32A 3p (2P+PE) 230V (200 - 250V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: bronze green RAL 6031-F9
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 10.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device colour: bayonet ring bronze green RAL 6031-F9, hinged cover bronze green RAL 6031-F9, housing bronze green RAL 6031-F9, housing grey RAL 7035
Device height: 97 mm, device width: 94 mm, device depth: 112 mm
Vertical flange dimension: 75 mm, horizontal flange dimension: 75 mm
Hole spacing vertical: 60 mm, Hole spacing horizontal: 60 mm
Other technical features: The bayonet cover is attached to the housing with a fastening strap
VG type no.: VG 96919 AS 042, supply no.: 5935-12-308-1885
Type: 13032


Questions & answers

What is the delivery time of BALS 13032 mounted receptacle TN QC just 3p 32A 230V 6h IP67?

The article BALS 13032 mounted receptacle TN QC just 3p 32A 230V 6h IP67 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 13032 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you BALS 13032 mounted receptacle TN QC just 3p 32A 230V 6h IP67 always at the best possible price. We can give you a discount of 2% on BALS 13032 mounted receptacle TN QC just 3p 32A 230V 6h IP67 if you choose payment in advance on ordering.

You can also send us a price proposal for your desired quantity of BALS 13032 mounted receptacle TN QC just 3p 32A 230V 6h IP67 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
