BALS 63 5400 6H QUICK-CONNECT 130119, TE-A-DO IP67 107 X 1

Your rating:
Average rating
Rating for BALS 63 5400 6H QUICK-CONNECT 130119, TE-A-DO IP67 107 X 1
( 4.4 / 5 ) 5 ratings
BALS 130119
This image may differ from the desired article.
312,64 EUR
( 372,04 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x BALS 63 5400 6H QUICK-CONNECT 130119, TE-A-DO IP67 107 X 1
Lieske Part No.:251412
Mfg Part No: 130119
UPC/EAN: 4024941195409
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
5289,19 EUR
10265,74 EUR
15242,30 EUR
20218,85 EUR

Product information for BALS 130119:

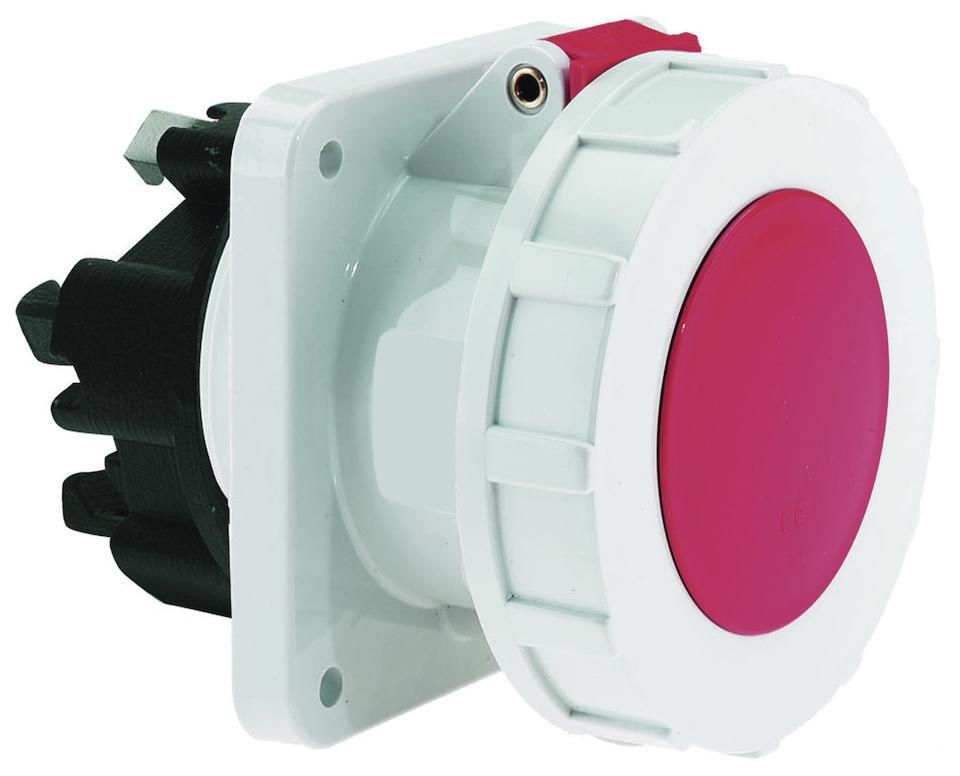

QUICK-CONNECT TE panel socket straight
63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass
Maximum conductor cross-section: 25.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology with box terminals and Kontex contact
Cable entry: other
Device colour: hinged lid red RAL 3000, bayonet ring grey RAL 7035, housing grey RAL 7035
Device height: 114 mm, device width: 111 mm, device depth: 146 mm
Flange dimension vertical: 107 mm, flange dimension horizontal: 100 mm
Hole spacing vertical: 85 mm, hole spacing horizontally: 77 mm


Questions & answers

What is the delivery time of BALS 63 5400 6H QUICK-CONNECT 130119, TE-A-DO IP67 107 X 1?

The article BALS 63 5400 6H QUICK-CONNECT 130119, TE-A-DO IP67 107 X 1 is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 130119 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you BALS 63 5400 6H QUICK-CONNECT 130119, TE-A-DO IP67 107 X 1 always at the best possible price. We can give you a discount of 2% on BALS 63 5400 6H QUICK-CONNECT 130119, TE-A-DO IP67 107 X 1 if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 5 pieces of BALS 63 5400 6H QUICK-CONNECT 130119, TE-A-DO IP67 107 X 1 we can offer you a price of 289,19 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of BALS 63 5400 6H QUICK-CONNECT 130119, TE-A-DO IP67 107 X 1 via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
