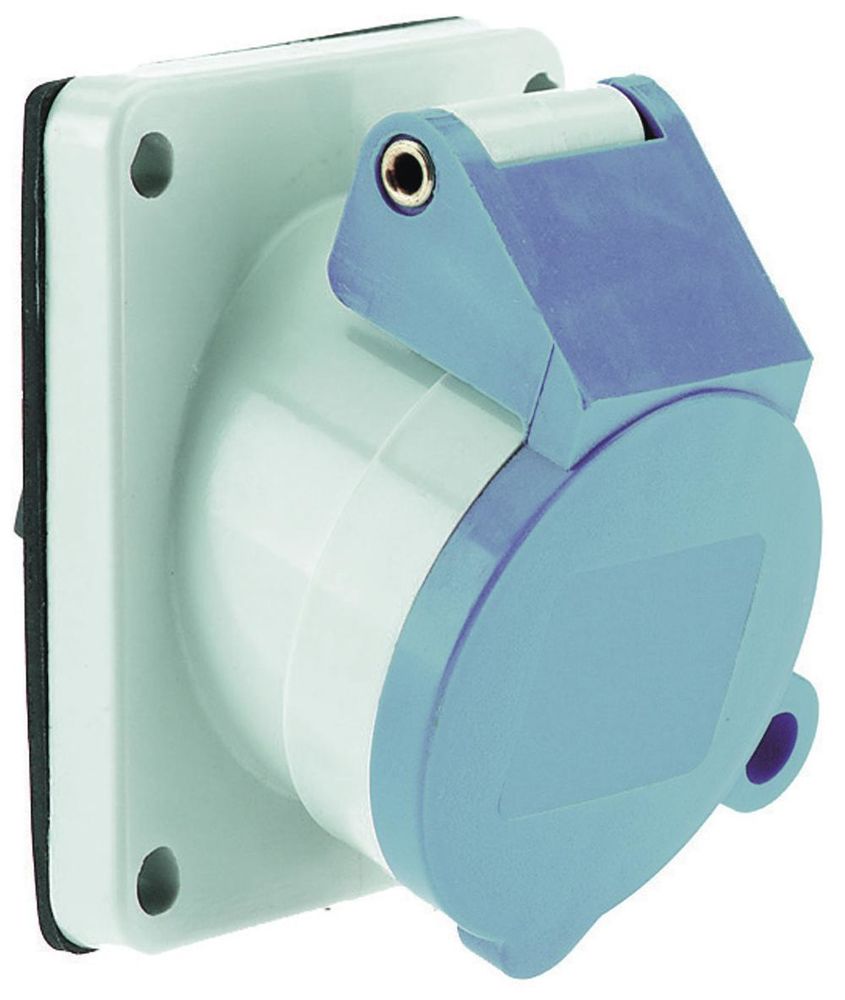

Bals mounting socket outlet Quick-Connect 12990, tilted blue 16A 3p 6h 200-250V 50/60Hz

Your rating:
Average rating
Rating for Bals mounting socket outlet Quick-Connect 12990, tilted blue 16A 3p 6h 200-250V 50/60Hz
( 4.8 / 5 ) 4 ratings
BALS 12990
This image may differ from the desired article.
91,58 EUR
( 108,98 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals mounting socket outlet Quick-Connect 12990, tilted blue 16A 3p 6h 200-250V 50/60Hz
Lieske Part No.:867591
Mfg Part No: 12990
UPC/EAN: 4024941129909
Weight:0.12 kg
Graduated prices net
From piecesPrice per pieces
1084,71 EUR
2577,84 EUR
5070,97 EUR
7564,11 EUR

Product information for BALS 12990:

QUICK-CONNECT panel socket inclined
16A 3p (2P+PE) 230V (200 - 250V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: blue RAL 5015
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device colour: hinged lid blue RAL 5015, housing grey RAL 7035
Device height: 77 mm, device width: 63 mm, device depth: 94 mm
Flange dimension vertical: 74 mm, flange dimension horizontal: 62 mm
Hole spacing vertical: 60 mm, hole spacing horizontal: 52 mm
Other technical properties: The inclination is 20°, the plug device can be locked with a padlock (shackle diameter 5mm) is possible


Questions & answers

What is the delivery time of Bals mounting socket outlet Quick-Connect 12990, tilted blue 16A 3p 6h 200-250V 50/60Hz?

The article Bals mounting socket outlet Quick-Connect 12990, tilted blue 16A 3p 6h 200-250V 50/60Hz is currently not in stock und muss auftragsbezogen bestellt werden.

According to our experience the article is ready for dispatch within 8 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of BALS 12990 to our sales team for an exact delivery time.

How can I buy the item at a lower price?

We offer you Bals mounting socket outlet Quick-Connect 12990, tilted blue 16A 3p 6h 200-250V 50/60Hz always at the best possible price. We can give you a discount of 2% on Bals mounting socket outlet Quick-Connect 12990, tilted blue 16A 3p 6h 200-250V 50/60Hz if you choose payment in advance on ordering.

In addition, you can save money with our attractive graduation prizes with every purchase. If you buy a minimum of 10 pieces of Bals mounting socket outlet Quick-Connect 12990, tilted blue 16A 3p 6h 200-250V 50/60Hz we can offer you a price of 84,71 EUR per piece. The more you buy, the cheaper the article will be.

You can also send us a price proposal for your desired quantity of Bals mounting socket outlet Quick-Connect 12990, tilted blue 16A 3p 6h 200-250V 50/60Hz via the form price proposal. Enter your name, contact details, price and quantity you need. Our sales team will then send you a good quotation immediately.

We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
