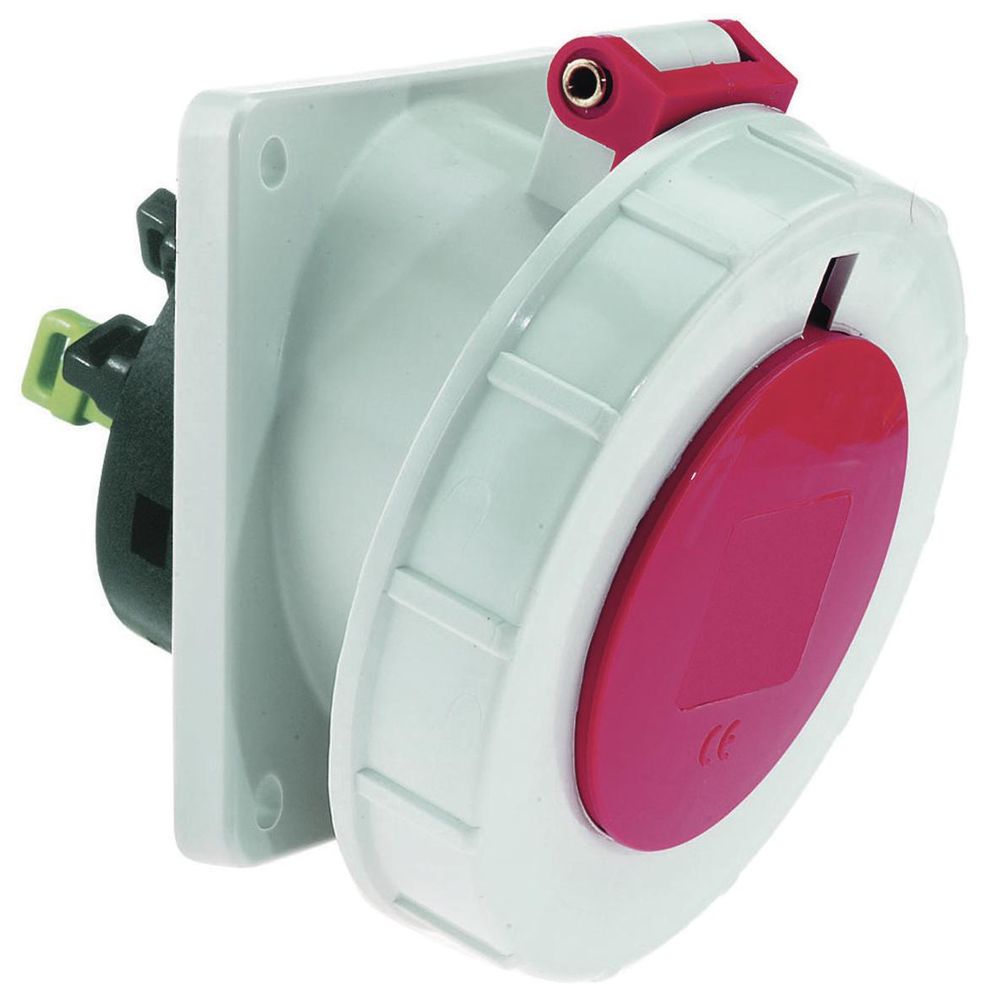

Bals 12839 QUICK-CONNECT mounting socket with inclination 16A 5p 400V 6h IP67

Your rating:
Average rating
Rating for Bals 12839 QUICK-CONNECT mounting socket with inclination 16A 5p 400V 6h IP67
( 4.4 / 5 ) 10 ratings
BALS 12839
This image may differ from the desired article.
142,07 EUR
( 169,06 EUR incl. VAT )
2025-10-10Delivery time on requestinfo_outline
1x Bals 12839 QUICK-CONNECT mounting socket with inclination 16A 5p 400V 6h IP67
Lieske Part No.:1315979
Mfg Part No: 12839
UPC/EAN: 4024941128391
Weight:0.12 kg

Product information for BALS 12839:

QUICK-CONNECT panel socket inclined
16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67
Frequency: 50/60Hz
Technical identification color: red RAL 3000
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device color: hinged lid red RAL 3000, bayonet ring gray RAL 7035, housing gray RAL 7035
Device height: 103 mm, device width: 92 mm, device depth: 101 mm
Flange dimension vertical: 100 mm, flange dimension horizontal: 92 mm
Hole spacing vertical: 85 mm, hole spacing horizontal: 77 mm
Other technical properties: The inclination is 20°
Type: 12839
