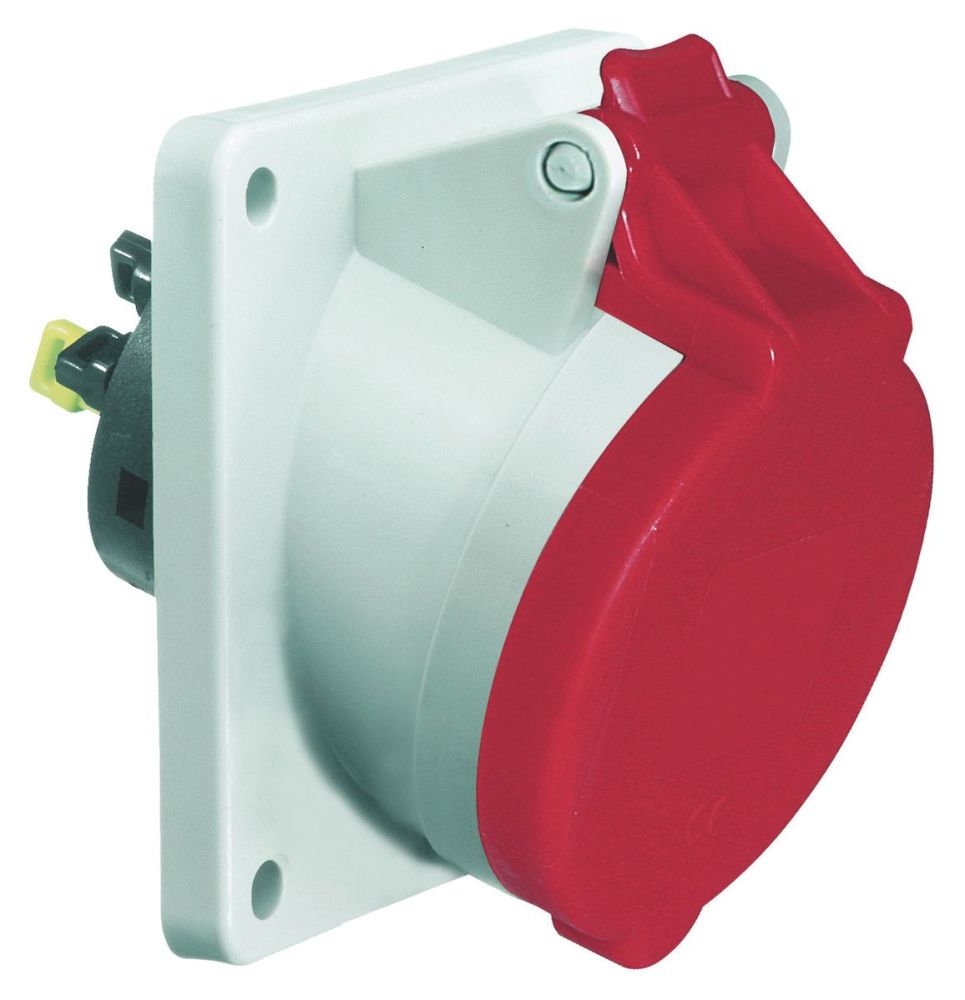

Bals 12753 mounting socket QUICK-CONNECT with tilt 16A 4p 400V 6h IP44
|
80,47 EUR |
|||||||||||
|
( 95,76 EUR incl. VAT ) ≈ £67.35 | ≈ $90.05 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 214586 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 12753 | ||||||||||
| UPC/EAN: | 4024941127530 | ||||||||||
| Weight: | 0.132 kg | ||||||||||
| Type: | 12753 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 12753:
16A 4p (3P+PE) 400V (380 - 415V~) 6h IP44
Frequency: 50/60Hz
Technical identification colour: red RAL 3000
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device colour: hinged lid red RAL 3000, housing grey RAL 7035
Device height: 85 mm, device width: 85 mm, device depth: 102 mm
Flange dimension vertical: 85 mm, flange dimension horizontal: 85 mm
Hole spacing vertical: 70 mm, hole spacing horizontal: 70 mm
Other technical properties: The inclination is 20°
| General | |
| IEC-amperage | 16 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Number of poles | 4 |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Angle of plug | Angled |
| Material | Plastic |
| Flange size vertical | 85 |
| Drill hole distance vertical | 70 |
| Flange size horizontal | 85 |
| Drill hole distance horizontal | 70 |
| Military model | |
