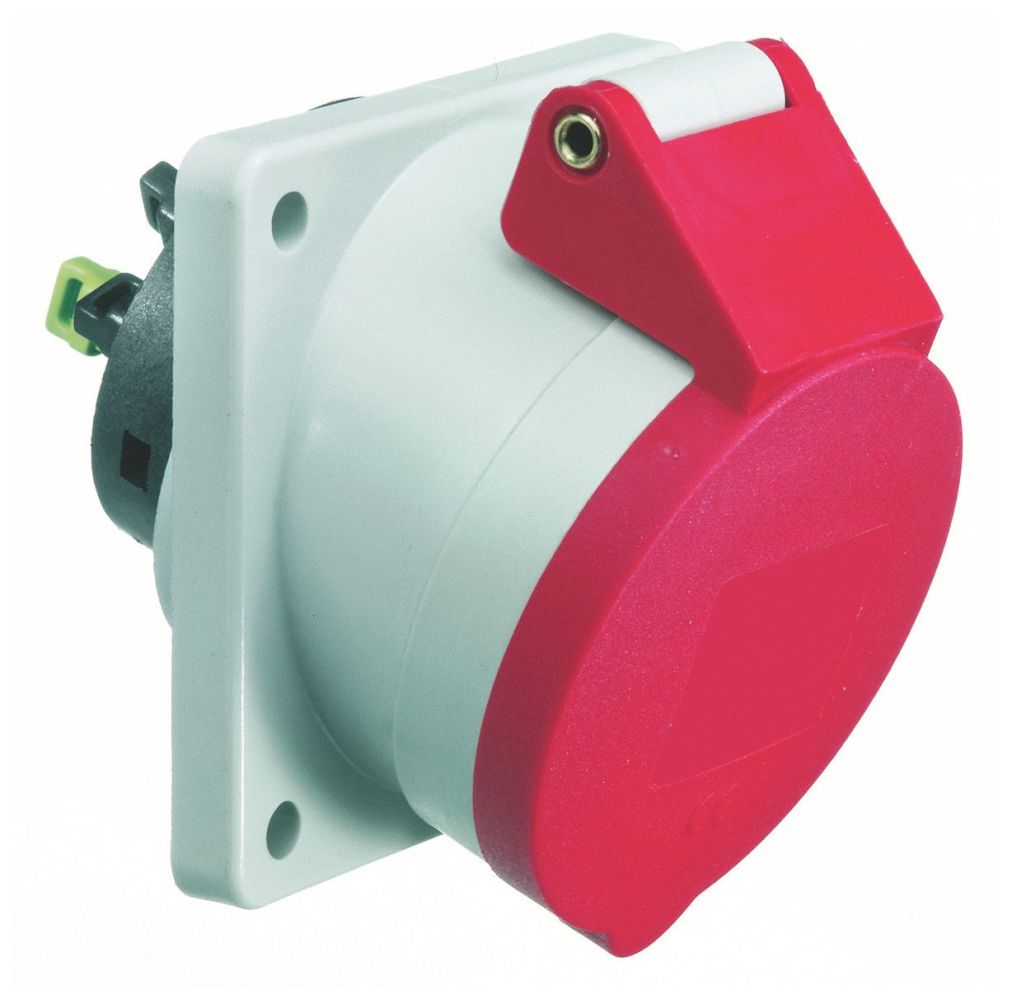

Bals 12735 mounting socket QUICK-CONNECT with tilt 16A 4p 400V 6h IP44
|
80,47 EUR |
|||||||||||
|
( 95,76 EUR incl. VAT ) ≈ £67.35 | ≈ $90.05 plus delivery charges: 55,00 € |
|||||||||||
| Made to order · Delivery time approx. 20 workdaysinfo_outline | |||||||||||
| Lieske Part No.: | 236708 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Mfg Part No: | 12735 | ||||||||||
| UPC/EAN: | 4024941127356 | ||||||||||
| Weight: | 0.122 kg | ||||||||||
| Type: | 12735 | ||||||||||
|
Graduated prices net
|
|||||||||||
Product information for Bals 12735:
16A 4p (3P+PE) 400V (380 - 415V~) 6h IP44
Frequency: 50/60Hz
Technical identification color: red RAL 3000
Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are bare brass
Maximum conductor cross-section: 4.0 mm²
Housing material: polyamide
Connection technology: screwless spring clamp technology as cage clamp with Kontex contact
Cable entry: other
Device color: hinged lid red RAL 3000, housing gray RAL 7035
Device height: 90 mm, device width: 71 mm, device depth: 96 mm
Flange dimension vertical: 87 mm, flange dimension horizontal: 71 mm
Hole spacing vertical: 70 mm, hole spacing horizontal: 52 mm
Other technical properties: The inclination is 20°
| General | |
| IEC-amperage | 16 |
| Voltage acc. EN 60309-2 | 400 V (50+60 Hz) red |
| Number of poles | 4 |
| Clock hour position | 6 |
| Identification colour | Red |
| RAL-number | 3000 |
| Degree of protection (IP) | IP44 |
| Connection system | Screw less terminal |
| Angle of plug | Angled |
| Material | Plastic |
| Flange size vertical | 87 |
| Drill hole distance vertical | 70 |
| Flange size horizontal | 71 |
| Drill hole distance horizontal | 52 |
| Military model | |
Questions & answers
What is the delivery time of Bals 12735 mounting socket QUICK-CONNECT with tilt 16A 4p 400V 6h IP44?
The article Bals 12735 mounting socket QUICK-CONNECT with tilt 16A 4p 400V 6h IP44 is currently not in stock and must be ordered on a per-order basis.
According to our experience the article is ready for dispatch within 20 working days. The delivery time usually refers to 1 piece. When ordering larger quantities, we can maybe shorten the delivery time. Just send us an inquiry about the desired quantity of Bals 12735 to our sales team for an exact delivery time.
How can I buy the item at a lower price?
We offer you Bals 12735 mounting socket QUICK-CONNECT with tilt 16A 4p 400V 6h IP44 always at the best possible price. We can give you a discount of 2% on Bals 12735 mounting socket QUICK-CONNECT with tilt 16A 4p 400V 6h IP44 if you choose payment in advance on ordering.
In addition, you can save money with our attractive graduated prizes with every purchase. If you buy a minimum of 6 pieces of Bals 12735 mounting socket QUICK-CONNECT with tilt 16A 4p 400V 6h IP44 we can offer you a price of 76,25 EUR per piece. The more you buy, the cheaper the article will be.
We also offer individual prices for your needs. You can get an offer by using the form Wholesale Inquiry.
